MTD012713

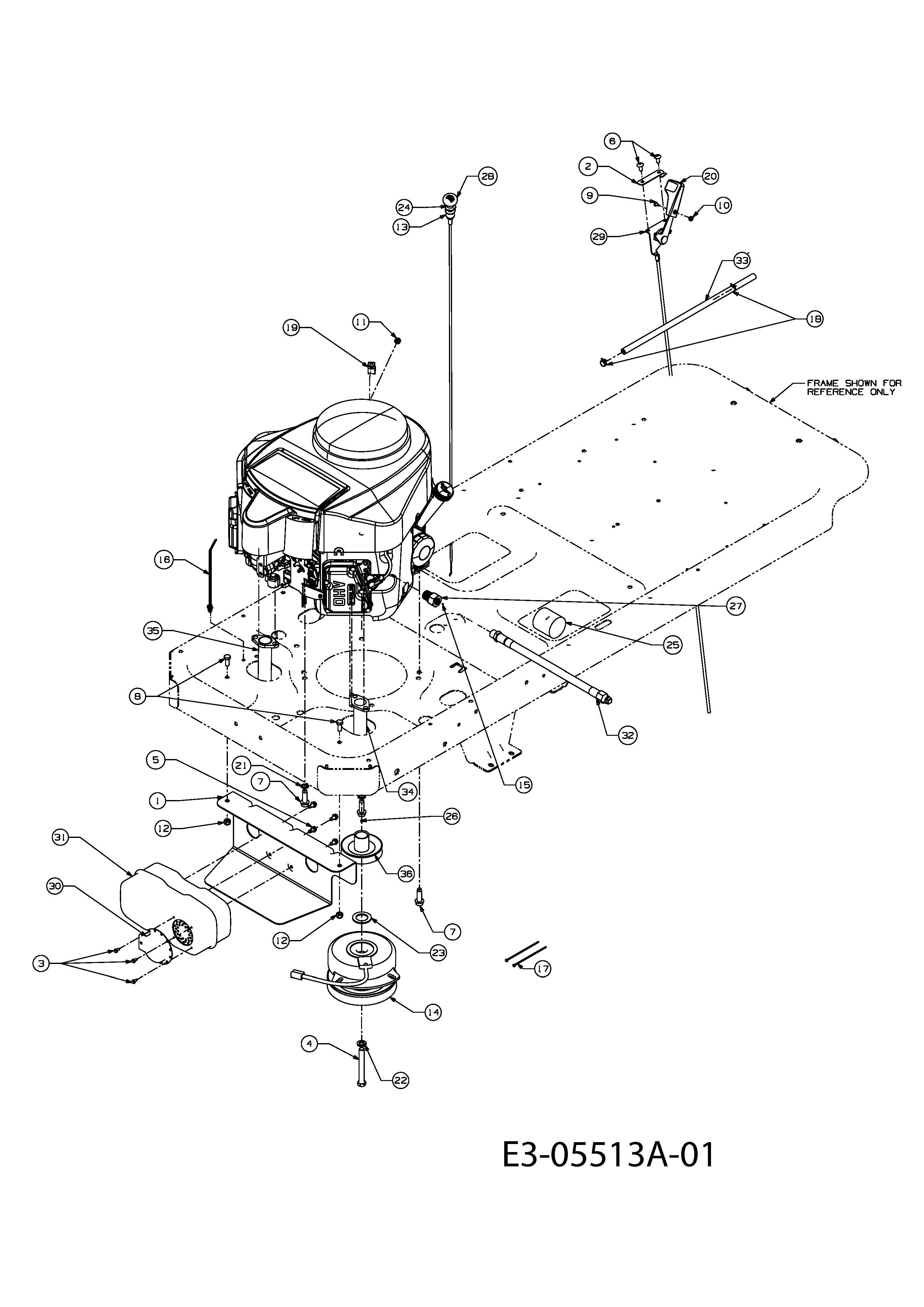

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	703-05441A	EXHAUST BRACKET	£75.56	Add
002	703-05899	BRKT:THROT:KAW:EXPORT	£63.43	Add
003	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
004	710-04379A	SCREW	£13.79	Add
005	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
006	710-1017	TAP SCREW	£2.97	Add
007	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
008	710-3008	HEX BOLT	£3.03	Add
009	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
010	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
011	712-0271	NUT:SEMS:1/4-20	£3.03	Add
012	712-0429	NUT HEX.INS L NUT	£4.92	Add
013	712-3005	NUT:FLGLK:3/8-16:GR5	£3.49	Add
014	717-1774C	CLUTCH ELEC PTO	£613.99	Add
015	721-0331	SLNT:PIPE:PST 592 LOCTITE	N/A	POA
016	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
017	726-0197	TIE:CBL:PANDUIT SST-1M	£4.11	Add
018	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
019	726-0272	Clamp	£2.98	Add
020	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
021	738-0148	NO LONGER AVAILABLE	N/A	POA
022	736-0171	WASHER	£2.93	Add
023	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
024	736-0300	WASHER	£2.81	Add
025	737-0169	MOTOR OIL SAE 30, SD,SE &	N/A	POA
026	737-0288	NO LONGER AVAILABLE	N/A	POA
027	737-04138	FTG:1.0 HEX x M20 METRIC THD	£27.42	Add
028	746-04214	CABLE-CHOKE 61.0 LG	£48.63	Add
029	746-04581	THROTTLE CABLE	£51.85	Add
030	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
031	751-0616B	MFLR:DUAL INLET	£139.86	Add
032	751-10291A	HOSE-OIL DRAIN 13,75 LG	£60.02	Add
033	751-10349	HOSE:FUEL:LOW PERMEATION	£72.63	Add
034	751-10770	TUBE EXHAUST RH	£65.85	Add
035	751-10771	TUBE EXHAUST LH	£65.85	Add
036	756-04376	ENGINE PULLEY	£103.10	Add
