MTD012707

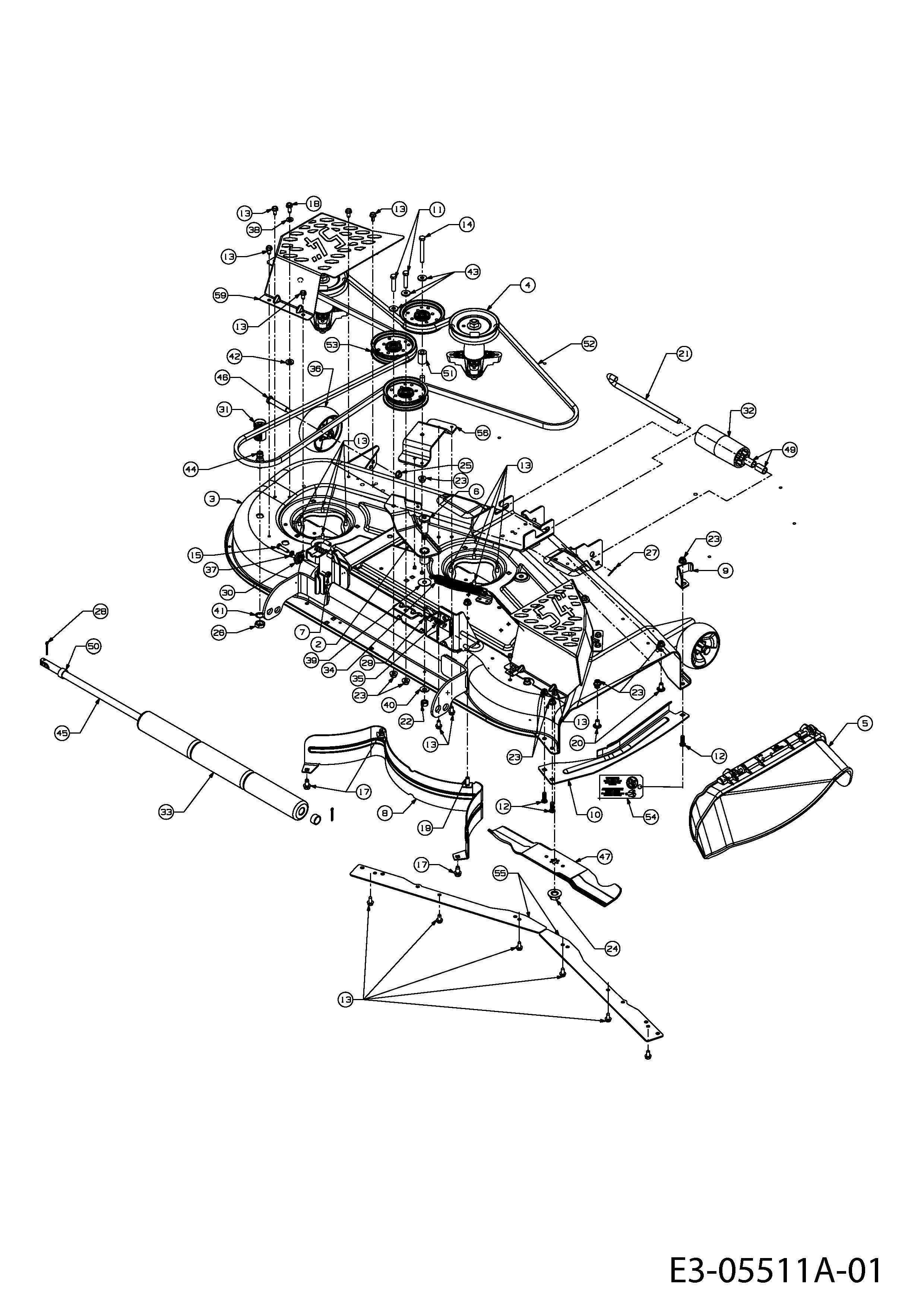

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	603-04386ACY	BRKT ASM:BELT GUARD:400:E-DECK	£115.40	Add
003	603-04603ACY	DECK ASSY.	£529.76	Add
004	618-04608A	SPDL ASM:PUL:5.39	£155.83	Add
005	631-04092C	CHUT ASM:48/50/54" DECK EXPORT	£57.60	Add
006	638-04012A	BOLT	£17.98	Add
007	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
008	703-2093C637	BAFFLE REAR INNER 703-2093	£73.04	Add
009	703-3279	STOP:CHUT:DFL	£27.80	Add
010	703-3511B637	GUARD BLACK	£30.09	Add
011	710-0347	HEX SCR	£3.72	Add
012	710-04095	SCREW HEX CAP	£8.34	Add
013	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
014	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
015	710-0528	SCREW (DNR)	£3.55	Add
016	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
017	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
018	710-0650	SCREW	£3.58	Add
019	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
020	710-3178	BOLT SHORT NECK CARR	£11.46	Add
021	711-1737	PIN FOR ROLLER	£21.06	Add
022	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
023	712-04065	NUT	£4.02	Add
024	712-05134	BLADE NUT	£3.81	Add
025	712-0431	NUT	£3.20	Add
026	712-0641	NUT	£6.47	Add
027	714-0111	COTTER PIN	£3.20	Add
028	714-0162	COTTER PIN	£2.79	Add
029	714-0470	COTTER PIN	£5.07	Add
030	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
031	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
032	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
033	731-05825	ROLLER DECK	£44.71	Add
034	732-04609	Spring	£21.61	Add
035	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
036	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
037	736-0119	LOCK WASHER 5/16	£3.33	Add
038	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
039	736-0406	WASH:F:.442 IDX 1.38 ODX.060HT	£3.39	Add
040	736-0407	WASHER	£11.84	Add
041	736-0760	WASHER	£4.01	Add
042	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
043	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
044	737-04003D	NOZ:DECK:WATER	£19.14	Add
045	738-04260	SHF:.75 DIA x 26.893 LG	£70.33	Add
046	738-3056	SHOULDER BOLT	£12.94	Add
047	742-0677B	BLADE 18,50" LG	£26.12	Add
048	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
049	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
050	750-0212	SPCR:.82 ID x 1.00 OD x.53	£12.80	Add
051	750-04597	SPACER .380X.900X1.313	£14.75	Add
052	754-04138A	BELT:V TYPE:B SEC X 134	£64.10	Add
053	753-08171	KIT IDLER PULLEY	£37.57	Add
054	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
055	783-04690B-S	SKIRT DECK 54"	£68.91	Add
056	783-04726637	BRKT:SUPT:IDLR:FIXED 92 CM	£85.66	Add
058	783-1470A	COVER SPINDLE RIGHT	£103.61	Add
059	783-1471	COVER SPINDLE LEFT	£103.20	Add
