MTD011078

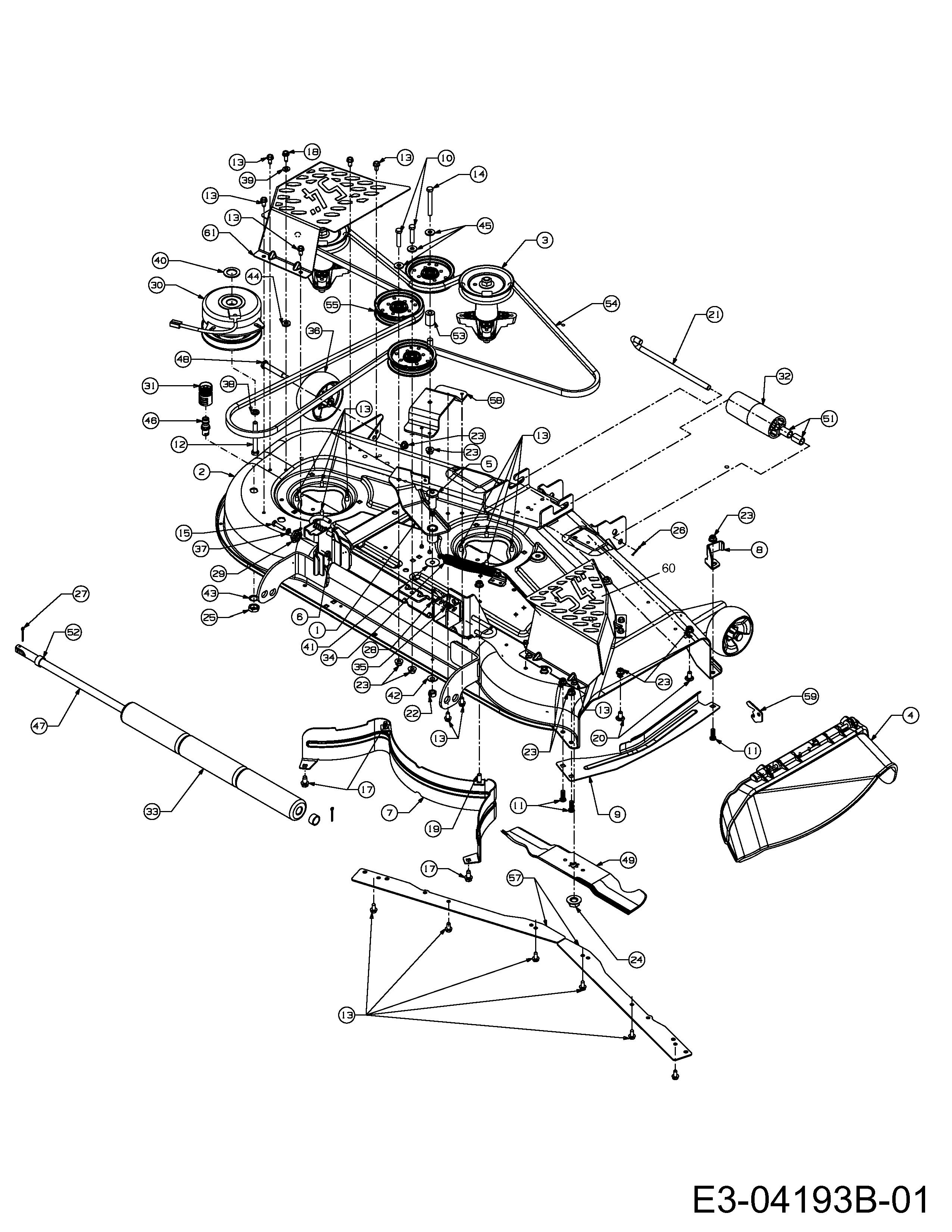

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04686	MT ASM:CRG:DECK:RH	£84.90	Add
002	603-04603	DECK ASSY.	£529.76	Add
003	618-04608A	SPDL ASM:PUL:5.39	£155.83	Add
004	631-04070C	CHUTE ASM	£45.69	Add
005	638-04012A	BOLT	£17.98	Add
006	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
007	703-2093C637	BAFFLE REAR INNER 703-2093	£73.04	Add
008	703-3279	STOP:CHUT:DFL	£27.80	Add
009	703-3511B637	GUARD BLACK	£30.09	Add
010	710-0347	HEX SCR	£3.72	Add
011	710-04095	SCREW HEX CAP	£8.34	Add
012	710-04379A	SCREW	£13.79	Add
013	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
014	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
015	710-0528	SCREW (DNR)	£3.55	Add
016	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
017	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
018	710-0650	SCREW	£3.58	Add
019	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
020	710-3178	BOLT SHORT NECK CARR	£11.46	Add
021	711-1737	PIN FOR ROLLER	£21.06	Add
022	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
023	712-04065	NUT	£4.02	Add
024	712-05134	BLADE NUT	£3.81	Add
025	712-0641	NUT	£6.47	Add
026	714-0111	COTTER PIN	£3.20	Add
027	714-0162	COTTER PIN	£2.79	Add
028	714-0470	COTTER PIN	£5.07	Add
029	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
030	717-1774C	CLUTCH ELEC PTO	£613.99	Add
031	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
032	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
033	731-05825	ROLLER DECK	£44.71	Add
034	732-04609	Spring	£21.61	Add
035	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
036	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
037	736-0119	LOCK WASHER 5/16	£3.33	Add
038	736-0171	WASHER	£2.93	Add
039	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
040	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
041	736-0406	WASH:F:.442 IDX 1.38 ODX.060HT	£3.39	Add
042	736-0407	WASHER	£11.84	Add
043	736-0760	WASHER	£4.01	Add
044	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
045	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
046	737-04003D	NOZ:DECK:WATER	£19.14	Add
047	738-04260	SHF:.75 DIA x 26.893 LG	£70.33	Add
048	738-3056	SHOULDER BOLT	£12.94	Add
049	742-0677B	BLADE 18,50" LG	£26.12	Add
050	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
051	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
052	750-0212	SPCR:.82 ID x 1.00 OD x.53	£12.80	Add
053	750-04597	SPACER .380X.900X1.313	£14.75	Add
054	754-04138A	BELT:V TYPE:B SEC X 134	£64.10	Add
055	753-08171	KIT IDLER PULLEY	£37.57	Add
057	783-04690B	SKIRT DECK 54"	£87.34	Add
058	783-04726	BRACKET IDLER PULLEY	£81.91	Add
059	783-06241	BRACKET STOP	N/A	POA
060	783-1470A	COVER SPINDLE RIGHT	£103.61	Add
061	783-1471	COVER SPINDLE LEFT	£103.20	Add
