MTD015944

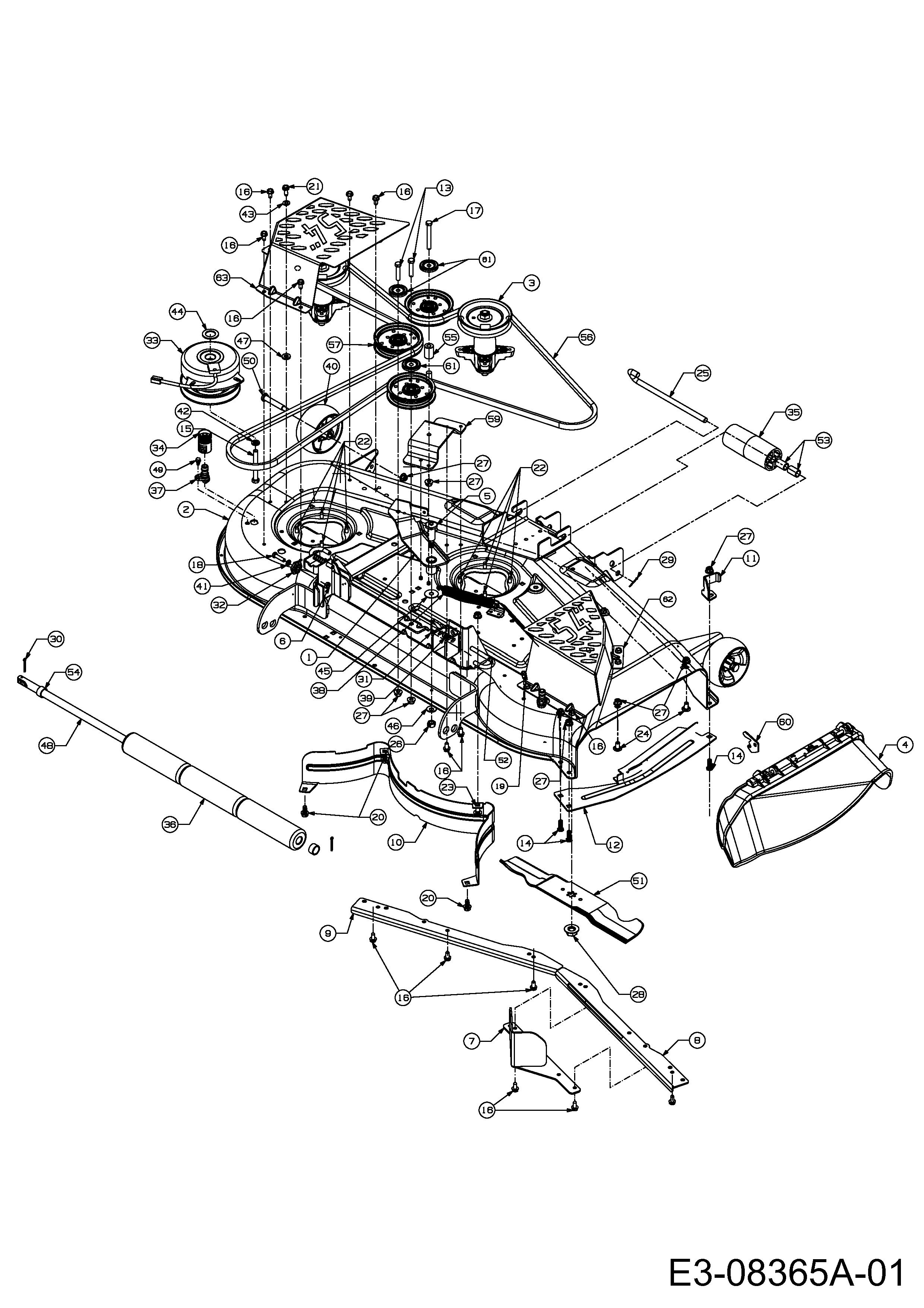

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04386A	IDLER ASSY.	£115.40	Add
002	603-04603A		N/A	POA
003	618-04608A	SPDL ASM:PUL:5.39	£155.83	Add
004	631-04092C	CHUT ASM:48/50/54" DECK EXPORT	£57.60	Add
005	638-04012A	BOLT	£17.98	Add
006	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
007	703-06018A		N/A	POA
008	703-08869		N/A	POA
009	703-08870		N/A	POA
010	703-2093C		N/A	POA
011	703-3279	STOP:CHUT:DFL	£27.80	Add
012	703-3511B		N/A	POA
013	710-0347	HEX SCR	£3.72	Add
014	710-04095	SCREW HEX CAP	£8.34	Add
015	710-04379A	SCREW	£13.79	Add
016	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
017	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
018	710-0528	SCREW (DNR)	£3.55	Add
019	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
020	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
021	710-0650	SCREW	£3.58	Add
022	710-1260A	SCREW	£4.00	Add
023	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
024	710-3178	BOLT SHORT NECK CARR	£11.46	Add
025	711-1737	PIN FOR ROLLER	£21.06	Add
026	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
027	712-04065	NUT	£4.02	Add
028	712-05134	BLADE NUT	£3.81	Add
029	714-0111	COTTER PIN	£3.20	Add
030	714-0162	COTTER PIN	£2.79	Add
031	714-0470	COTTER PIN	£5.07	Add
032	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
033	717-1774C	CLUTCH ELEC PTO	£613.99	Add
034	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
035	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
036	731-05825	ROLLER DECK	£44.71	Add
037	731-07487	NOZ:DECK WSH	£16.29	Add
038	732-04609	Spring	£21.61	Add
039	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
040	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
041	736-0119	LOCK WASHER 5/16	£3.33	Add
042	736-0171	WASHER	£2.93	Add
043	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
044	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
045	736-0406	WASH:F:.442 IDX 1.38 ODX.060HT	£3.39	Add
046	736-0407	WASHER	£11.84	Add
047	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
048	738-04260	SHF:.75 DIA x 26.893 LG	£70.33	Add
049	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
050	738-3056	SHOULDER BOLT	£12.94	Add
051	742-0677B	BLADE 18,50" LG	£26.12	Add
052	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
053	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
054	750-0212	SPCR:.82 ID x 1.00 OD x.53	£12.80	Add
055	750-04597	SPACER .380X.900X1.313	£14.75	Add
056	754-04138A	BELT:V TYPE:B SEC X 134	£64.10	Add
057	753-08171	KIT IDLER PULLEY	£37.57	Add
058	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
059	783-04726	BRACKET IDLER PULLEY	£81.91	Add
060	783-06241	BRACKET STOP	N/A	POA
061	783-07236	PULLEY CAP	£10.42	Add
062	783-1470A	COVER SPINDLE RIGHT	£103.61	Add
063	783-1471A	COVER SPINDLE LEFT	£93.94	Add
