MTD015947

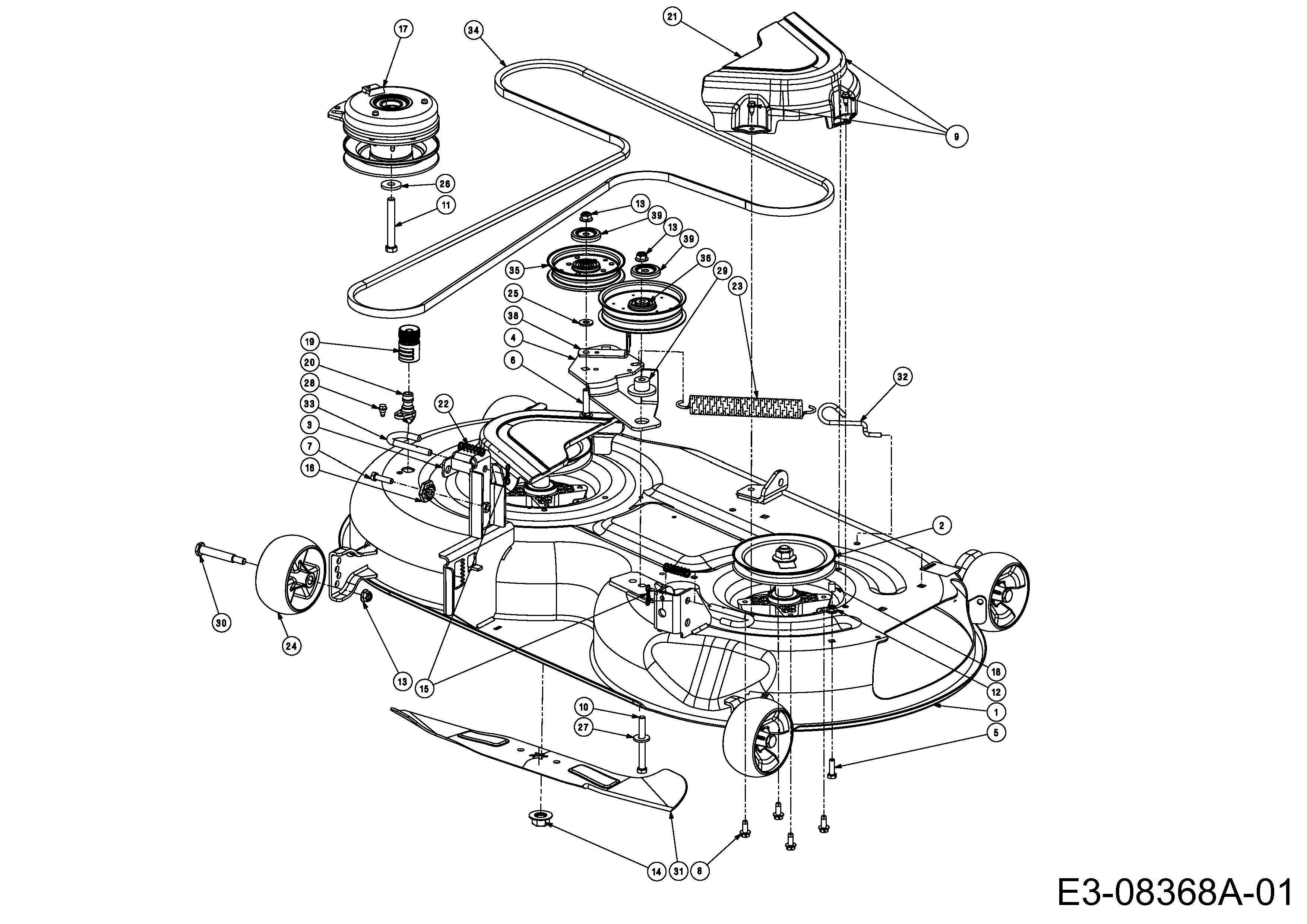

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04898A		N/A	POA
002	618-05078a	SPINDLE	£147.04	Add
003	683-05031		N/A	POA
004	703-08612A		N/A	POA
005	710-0376	SCREW HEX CAP 5/16	£9.02	Add
006	710-05376	CARRIAGE BOLT	£13.16	Add
007	710-0573	SCREW-HEX	£13.50	Add
008	710-1260A	SCREW	£4.00	Add
009	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
010	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
011	710-3157A	HEX.SCREW HHCS:7/16-20:3.25GR5	£9.80	Add
012	712-04063	FLANGED NUT	£4.20	Add
013	712-04065	NUT	£4.02	Add
014	712-05134	BLADE NUT	£3.81	Add
015	712-04040		N/A	POA
016	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
017	717-05122	CLUTCH ELECTR. PTO	£428.56	Add
018	720-05010	CAP VINYL	£4.62	Add
019	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
020	731-07487	NOZ:DECK WSH	£16.29	Add
021	731-08698	COVER BELT	N/A	POA
022	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
023	732-04927	SPRING	£31.87	Add
024	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
025	736-0300	WASHER	£2.81	Add
026	736-0322	FI-WASH	£8.68	Add
027	736-3052	WASH:FLAT:.406 X 1.00 X .105	£3.77	Add
028	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
029	738-05013A	SPACER SHOULDER	£22.87	Add
030	738-3056	SHOULDER BOLT	£12.94	Add
031	742-04290A	BLADE	£46.78	Add
032	747-05608	HOOK DECK SPRING	£41.59	Add
033	747-06082	PIN DECK RELEASE	£45.81	Add
034	754-04325	DECK BELT	£94.73	Add
035	753-08171	KIT IDLER PULLEY	£37.57	Add
036	756-04511A	PULLEY FLAT IDLER 5"	£59.58	Add
038	783-06368A-S	GUIDE ASSY-BELT	£21.57	Add
039	783-07236	PULLEY CAP	£10.42	Add
