MTD015951

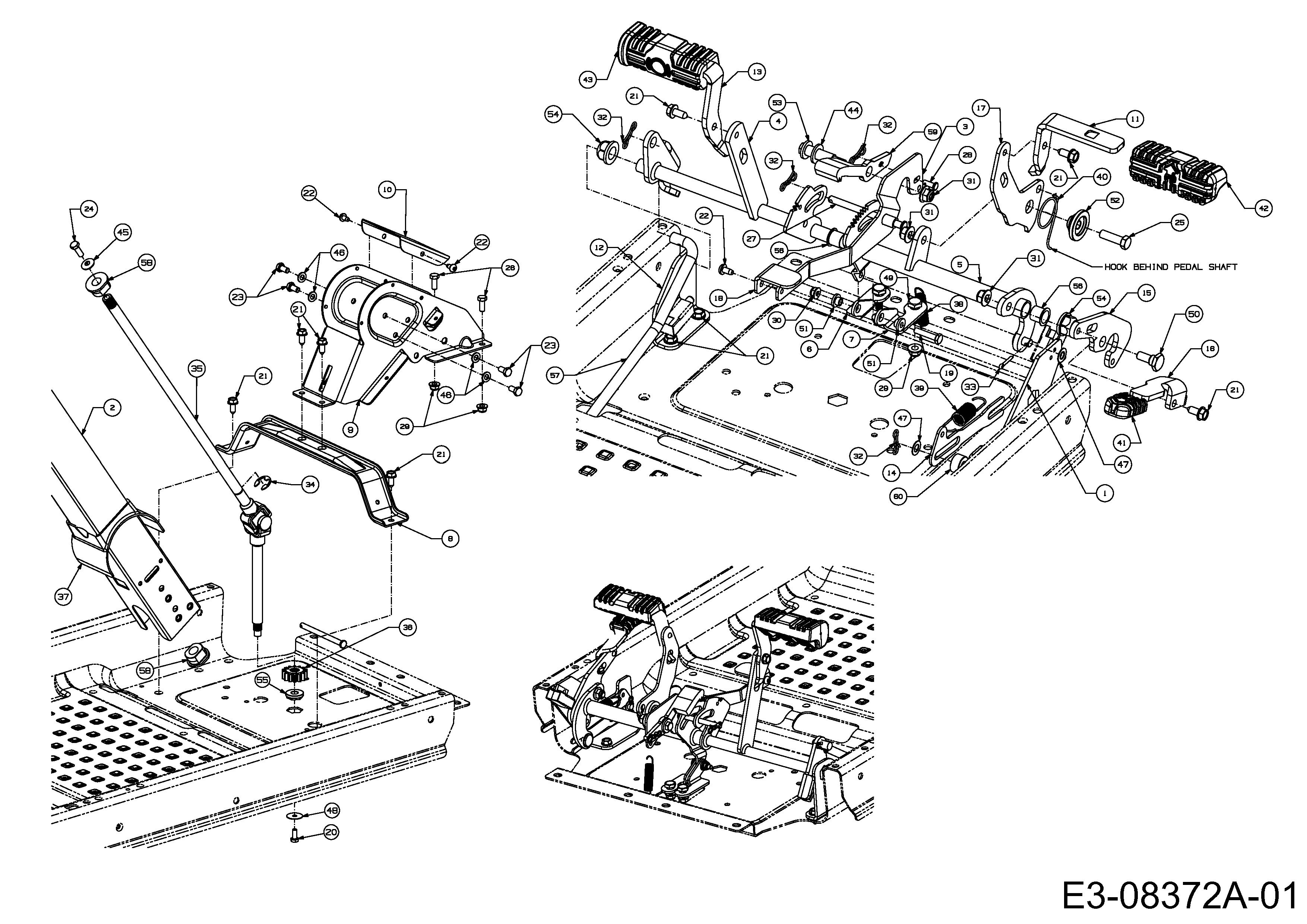

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04931A		N/A	POA
002	603-04938	STEERING COLUMN COVER	£181.45	Add
003	603-05040		N/A	POA
004	647-04289		N/A	POA
005	647-04270A	SHAFT ASM FWD PEDAL	N/A	POA
006	703-08604		N/A	POA
007	703-08606		N/A	POA
008	703-08620A		N/A	POA
009	703-08621A		N/A	POA
010	703-08622		N/A	POA
011	703-08646A		N/A	POA
012	703-08656		N/A	POA
013	^703-08675		N/A	POA
014	703-08678A	LINK NEUTRAL RETURN	N/A	POA
015	703-08690	PLATE REVERSE PEDAL PIVOT	£25.91	Add
016	703-08694A		N/A	POA
017	703-08754A		N/A	POA
018	703-09147		N/A	POA
019	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
020	710-0433	HEX BOLT	£6.66	Add
021	710-0371	SCREW-HEX	£4.39	Add
022	710-05270		N/A	POA
023	710-0538	HEX L BOLT	£4.15	Add
024	710-1245B	HHCS:5/16-24:.875:GR8:LOCK	£3.42	Add
025	710-3005	BOLT	£3.24	Add
026	710-3008	HEX BOLT	£3.03	Add
027	711-05068A	PIN:CLV:5/16 x 4.135	£9.82	Add
028	711-05670	ROD-FRONT LINK MTG	N/A	POA
029	712-04063	FLANGED NUT	£4.20	Add
030	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
031	712-04065	NUT	£4.02	Add
032	714-04040	PIN-COTTER	£4.38	Add
033	714-0474	PIN (RED)	£3.20	Add
034	716-0231	E RING (RED)	£2.97	Add
035	717-04954	SHAFT ASM STEERING	£192.54	Add
036	717-04960	GEAR STEERING 14 TEETH	£22.82	Add
037	731-07358B	COVER COLUMN	£33.50	Add
038	732-04580	SPRING-EXTENSION .50x2.73	£12.48	Add
039	732-04748	SPRING EXTENSION	£21.34	Add
040	732-04949	SPRING TORSION LH	£14.62	Add
041	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
042	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
043	735-04136	PAD:PEDAL:BRAKE	£20.70	Add
044	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
045	736-0242	BELL WASHER	£3.72	Add
046	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
047	736-0315	WASHER FLAT	£12.14	Add
048	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD	£3.49	Add
049	738-3024	NO LONGER AVAILABLE	N/A	POA
050	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
051	738-04483	SPCR:SHLDR:.375X.625X.20	£5.00	Add
052	738-04552A	SPACER	N/A	POA
053	738-0929	HEX CAP SCREW,1/2-13X1.75	£9.71	Add
054	741-0225	HEX FLANGE BEARING	£4.92	Add
055	741-04543	FLANGE BEARING	£13.43	Add
056	741-0495	FLANGED BRG.	£8.22	Add
057	747-05654A	ROD BRAKE	£57.87	Add
058	748-0209	BEARING FLANGE	£13.84	Add
059	748-04203	LATCH:CRUS	£17.46	Add
060	750-05635	SPACER	£20.78	Add
