MTD012461

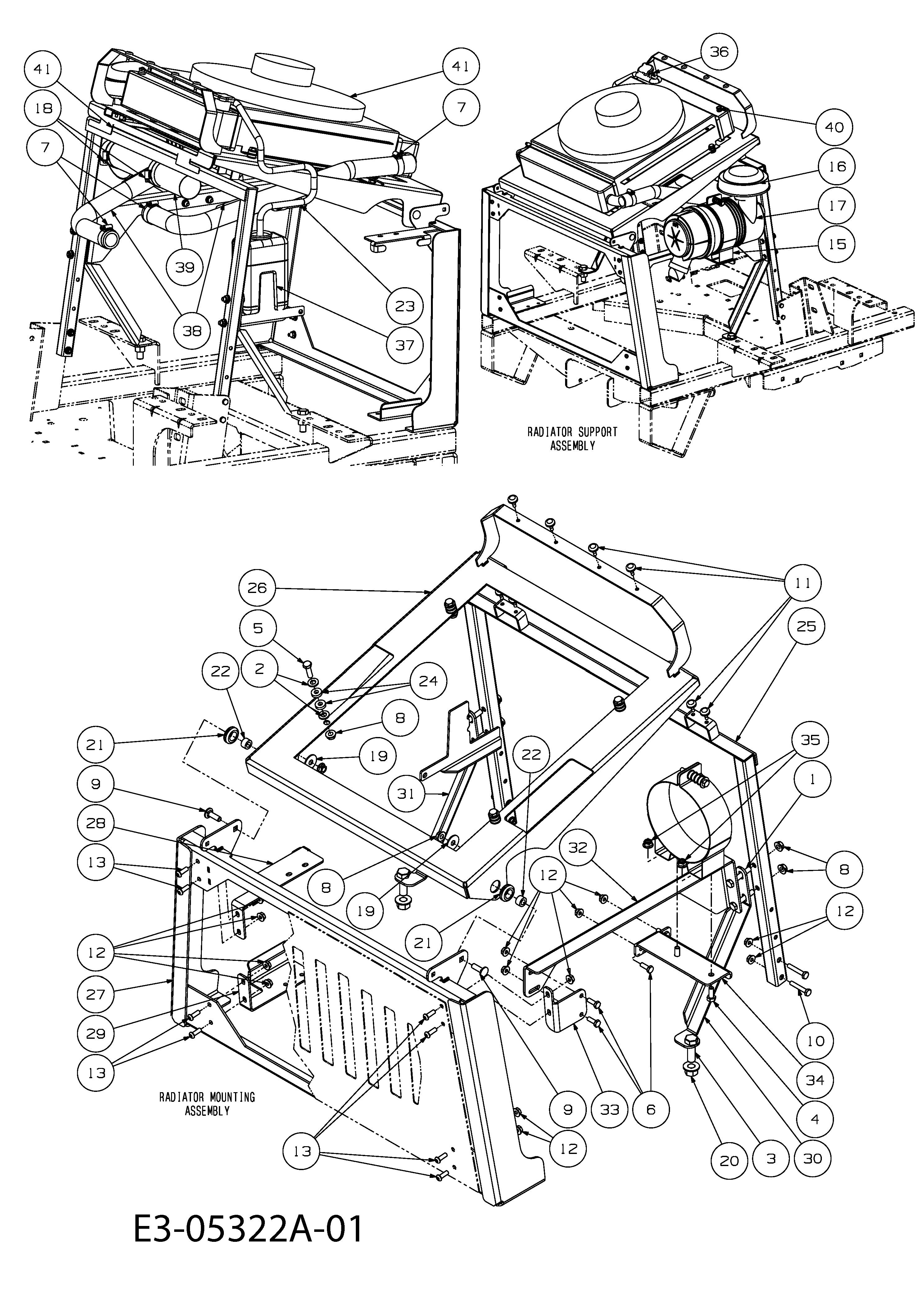

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012461

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 00006129 HEX SCREW 5/16-18X1.75 N/A POA
002 00009812 WASHER .344X.688X.063 N/A POA
003 00011951 N/A POA
004 00012179 HEX SCREW 5/16-18X.750 N/A POA
005 00012180 HEX SCREW 5/16-18 X 1.00 £20.12 Add
006 00013131 HEX SCREW 1/4-20 X .750 N/A POA
007 01000217 CLAMP HOSE N/A POA
008 712-3004A HEX FLANGE NUT £2.97 Add
009 01000641 N/A POA
010 01000896 SCREW HHCS:1/4-20:1.50:GR5:STD £3.59 Add
011 01001170 N/A POA
012 712-3027 LOCK NUT £2.79 Add
013 01009362 CAP SCREW 1/4-20X.750 N/A POA
014 01009580 N/A POA
015 01009874 AIR CLEANER MOUNTING BAND N/A POA
016 01009878 AIR CLEANER INLET HOOD N/A POA
017 01009880 AIR CLEANER ASM. N/A POA
018 01009895 HOSE CLAMP N/A POA
019 01009937 WASHER .313X1.06X.062 N/A POA
020 01010119 FLANGE TOP LOCK NUT 1/2-13 N/A POA
021 02001127 GROMMET .62X1.13X1/8 N/A POA
022 02001142 SPACER .357X.625X.375 N/A POA
023 02002567 RADIATOR HOSE N/A POA
024 02002577 WASHER .280X.690X.180 N/A POA
025 680-00080 FRONT RADIATOR MOUNT N/A POA
026 680-00098 RADIATOR MOUNT PLATE N/A POA
027 680-00127 LENS-#3 STYLE N/A POA
028 703-07386 UPPER MOUNT BRACKET N/A POA
029 703-07387 LOWER MOUNT BRACKET N/A POA
030 703-07601 RH RADIATOR SUPPORT BRACKET N/A POA
031 703-07602 LH RADIATOR SUPPORT BRACKET N/A POA
032 703-07715 AIR CLEANER SUPPORT BRACKET N/A POA
033 703-07716 AIR CLEANER SUPPORT BRACKET N/A POA
034 703-07718 AIR CLEANER MOUNT BRACKET N/A POA
035 712-04063 FLANGED NUT £4.20 Add
036 726-0205 HOSE CLAMP 1/2 INCH DIA. £3.44 Add
037 731-04731 EQUALIZING TANK £99.57 Add
038 735-04214 RADIATOR HOSE N/A POA
039 735-04219 FLEXIBLE REINFORCED HOSE N/A POA
040 737-04156 PLUG:PIPE 1/8-27 £17.71 Add
041 751-11364 RADIATOR YANMAR DIESEL £1,359.27 Add
