MTD012465

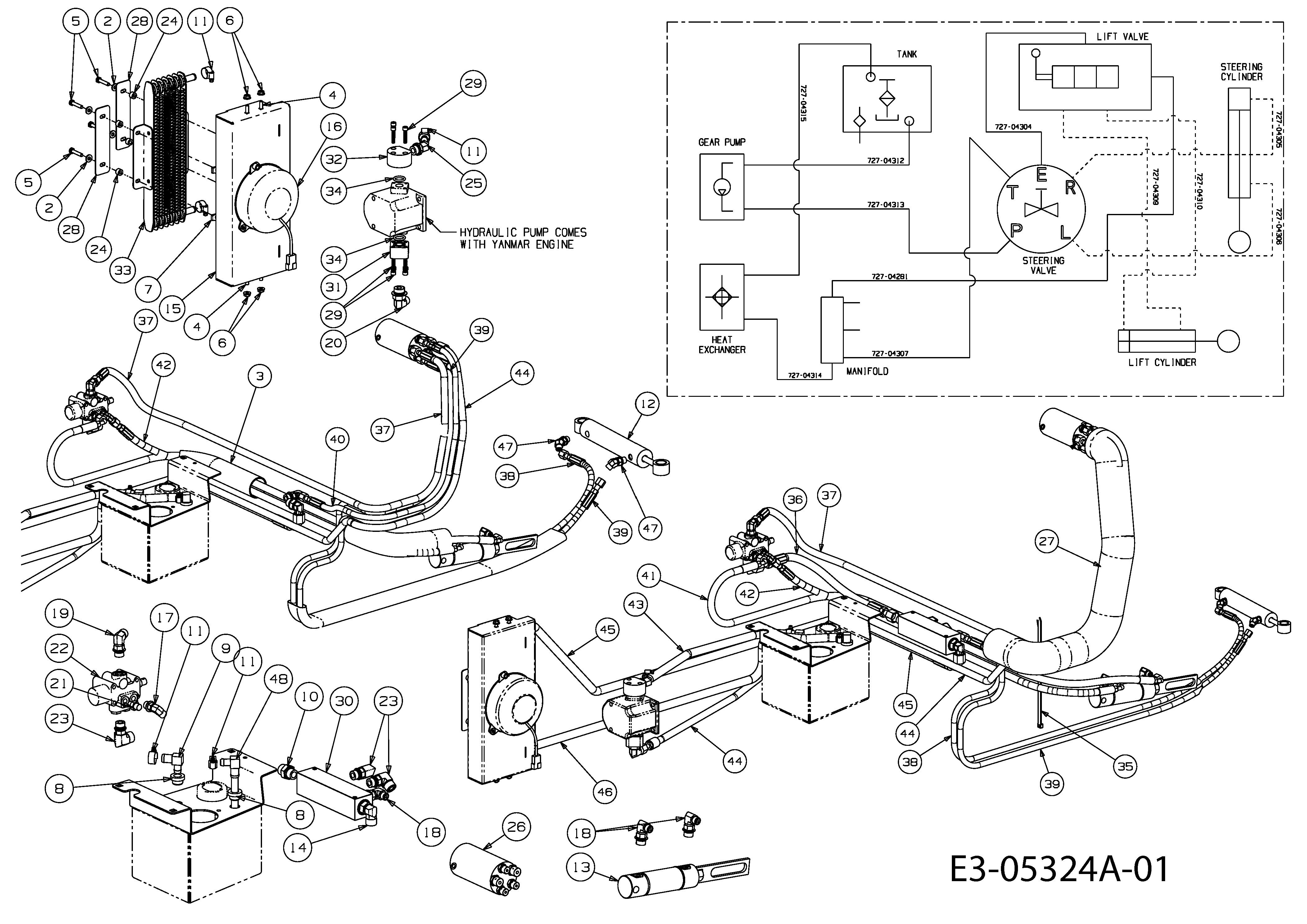

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012465

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 00012154 WASHER .281X.625X.063 N/A POA
003 00012529 SLEEVE N/A POA
004 00017584 N/A POA
005 01000913 HEX SCREW 1/4-20X1.25 N/A POA
006 712-3027 LOCK NUT £2.79 Add
007 01008539 N/A POA
008 02000296 GROMMET .54X.78 N/A POA
009 02001151 ELBOW FITTING 5/8 X 1/2 N/A POA
010 02001975 HYDRO ADAPTER N/A POA
011 02002392 HOSE CLAMP N/A POA
012 02003368 CYLINDER STEERING £270.68 Add
013 02003930 NO LONGER AVAILABLE N/A POA
014 02004258 HYDRO ADAPTER N/A POA
015 02004473 RADIATOR HOUSING ASM. N/A POA
016 02004481 FAN £169.46 Add
017 02004642 ELBOW FITTING 40RB-40RS N/A POA
018 02004643 ELBOW FITTING 40RS-60RB N/A POA
019 02004644 ELBOW FITTING 60RB-60RS N/A POA
020 02004645 ELBOW FITTING N/A POA
021 02004687 ELBOW FITTING 40RB-40RS N/A POA
022 02004696 DUAL ACTION LIFT HYDRO VALVE N/A POA
023 02004837 ELBOW FITTING 80RS-60RB N/A POA
024 02005057 SPACER .256X.500X.330 N/A POA
025 02005160 45³ FITTING 3/4 X 1/2 N/A POA
026 02005325 VALVE - HYDRO STEERING £445.82 Add
028 703-07680 HYDRO COOLER SCREEN RET. BRKT. N/A POA
029 710-04991 SOCKET HEAD SCREW 6-1.0 N/A POA
030 718-04563 MANIFOLD-CHARGE N/A POA
031 718-04667 PUMP ADAPTER FITTING MOUNT N/A POA
032 718-04704 SUCTION HYDRO FITTING N/A POA
033 718-3132 COOLER, OIL £263.70 Add
034 721-04188 O-RING £14.83 Add
035 726-0230 TIE:CBL:36.0 LONG £8.93 Add
036 727-04281 LIFT VALVE TO MANIFOLD HOSE N/A POA
037 727-04304 LIFT VALVE TO STEERING VALVE N/A POA
038 727-04305 HOSE ASM. STRG VLV TO STRG EXT N/A POA
039 727-04306 HOSE ASM. STRG VLV TO STRG RTR N/A POA
040 727-04307 HOSE ASM. STRG VLV OT MANIFOLD N/A POA
041 727-04309 HOSE ASM. LIFT VLV CYL RETRACT N/A POA
042 727-04310 HOSE ASM LIFT VLV CYL EXT N/A POA
043 727-04312 HOSE ASM PUMP TO TANK N/A POA
044 727-04313 HOSE ASM PUMP TO STRG VALVE N/A POA
045 727-04314 HOSE ASM MANIFOLD TO EXCHANGER N/A POA
046 727-04315 HOSE ASM EXCHANGER TO TANK N/A POA
047 727-04317 45³ ELBOW FITTING N/A POA
048 737-04260 ELBOW 1/2X5/8 BARB W/ STRAW N/A POA
