MTD012472

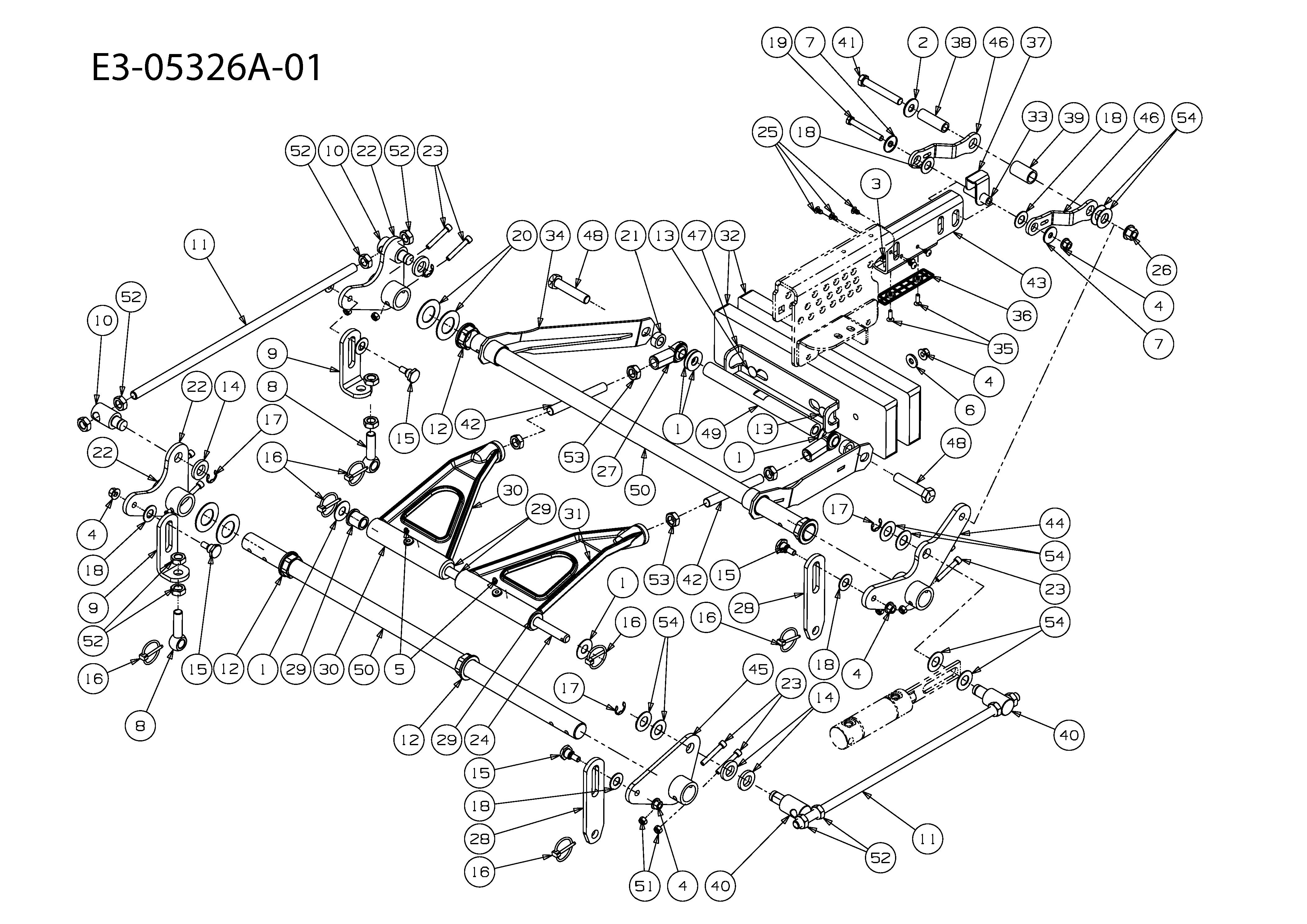

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00002766	WASHER .655X1.5X.055	N/A	POA
002	00011459	WASHER .563X1.38X.109	N/A	POA
003	00012152	NUT 1/4-20	N/A	POA
004	00022560	NO LONGER AVAILABLE	N/A	POA
005	00060078	grease nipple	N/A	POA
006	01000723	WASH:FLAT:.406 X 1.00 X .105	£3.31	Add
007	010008572		N/A	POA
008	01001744	EYE BOLT	£29.47	Add
009	01001746	EYE BOLT LINK	N/A	POA
010	01001855	FERRULE LIFT	£23.84	Add
011	01001857	LIFT CONNECTING ROD	£37.56	Add
012	01001930	HEX FLANGE BEARING	£20.43	Add
013	01002750	SCREW HHCS:3/8-16:3.00:GR8:STD	£4.50	Add
014	01003123	SPACER .812X1.47X.218	N/A	POA
015	01003535	SHOULDER BOLT 3/8-16X.625X.437	£20.04	Add
016	01003993	LYNCH PIN 3/16	£11.18	Add
017	01003994	RETAINER CLIP	£13.90	Add
018	01004003	WASHER	£13.16	Add
019	01004127	HEX SCREW 3/8-16X3.00	N/A	POA
020	01006408	WASHER 1.25X2.25X.075	N/A	POA
021	01007527	SPACER .630X1.06X.440	N/A	POA
022	01007680	BELLCRANK ASSY.	£93.21	Add
023	01007962	SCREW 5/16-18X2.0	N/A	POA
024	01008453	DECK LIFT LINK ROD (60" DECK)	£54.00	Add
025	01008801	RIVET 1/4X.625	N/A	POA
026	01010119	FLANGE TOP LOCK NUT 1/2-13	N/A	POA
027	02000293	ROD END RH	£82.83	Add
028	02000561	BRKT:HNGR:MTG STRAP	N/A	POA
029	02002384	FLANGE BEARING	£18.66	Add
030	02002397		N/A	POA
031	02002398		N/A	POA
032	02002426	BAR- WEIGHT CAT DIESEL	£158.92	Add
033	02003043	SPACER .375X.625X2.20	N/A	POA
034	02003257	FRONT FRAME SUPPORT ASM.	N/A	POA
035	02003505	FLAT HEAD SCREW 1/4-20X.750	N/A	POA
036	02003749	WEAR PLATE	N/A	POA
037	02003942	LOCK BRACKET	N/A	POA
038	02003944	SPACER .510X.750X2.38	N/A	POA
039	02003945	SPACER .765X1.00X1.70	N/A	POA
040	02004280	FERRULE LIFT	£55.19	Add
041	02004518	HEX SCREW 1/2-13X3.5	N/A	POA
042	02004692	ROD 5/8-18X5.5 (60" DECK)	N/A	POA
043	02005103	TUBE, HT ADJUST 1" OD	N/A	POA
044	02005350	ASSIST ASSY. HYDRO	£85.92	Add
045	02005352	BELLCRANK ASSY.	£72.03	Add
046	02005354	LOFT OFFSET YOKE BRACKET	N/A	POA
047	703-07740	WEIGHT BAR BRACKET	N/A	POA
048	710-04813	HEX SCREW 5/8-11X3.00	N/A	POA
049	711-05072	FRONT LIFT LINK MOUNT SHAFT	£99.02	Add
050	711-05216	DECK LIFT SHAFT	N/A	POA
051	712-0429	NUT HEX.INS L NUT	£4.92	Add
052	712-3015	NUT	£10.65	Add
053	712-3056	NUT:JAM:5/8-18:GR5	£3.80	Add
054	736-0188	FI-WASHER	£6.15	Add
