MTD012479

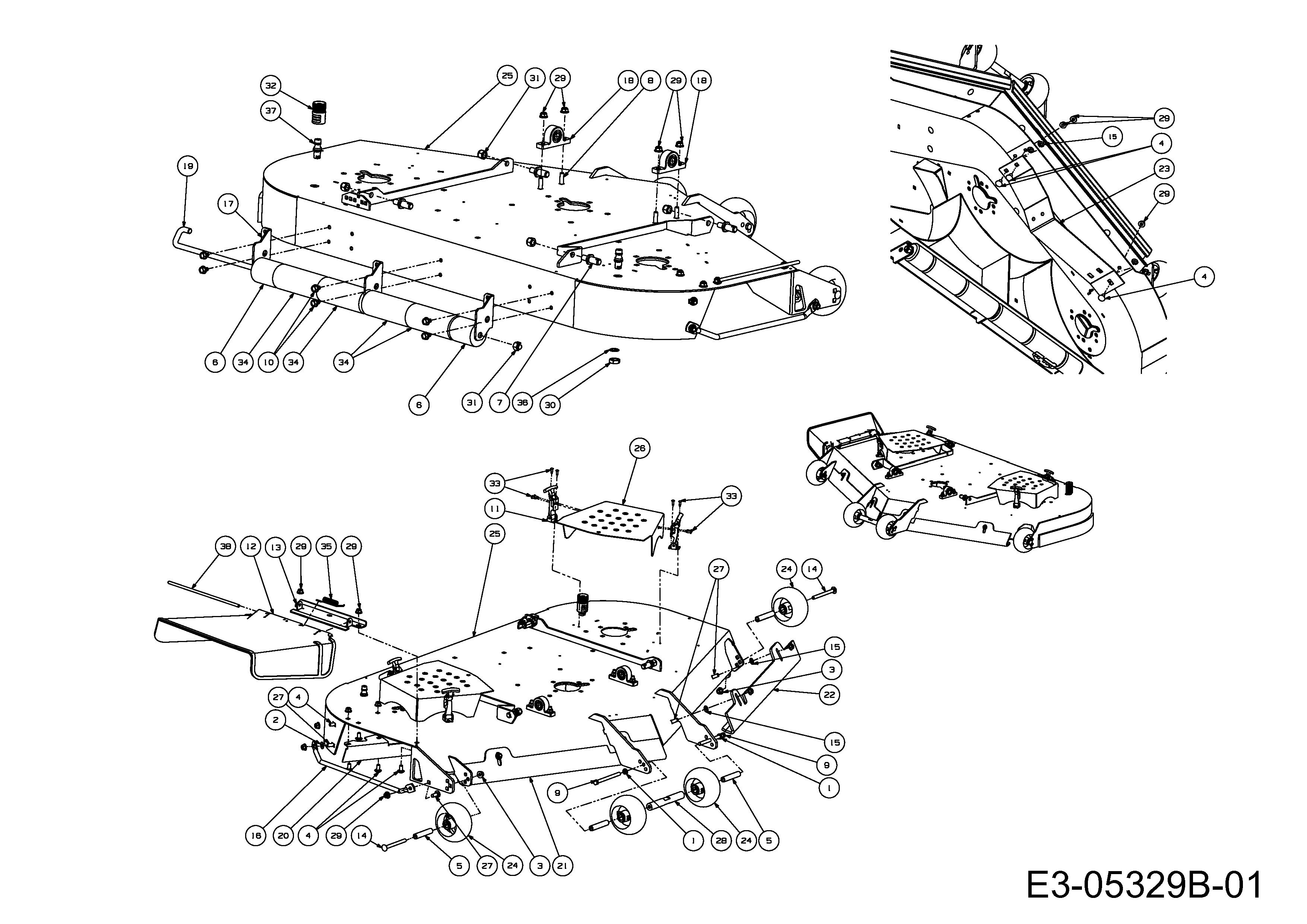

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	736-0169	L. WASHER	£2.89	Add
002	00012158	WASHER .406X.813X.063	N/A	POA
003	00022560	NO LONGER AVAILABLE	N/A	POA
004	710-3178	BOLT SHORT NECK CARR	£11.46	Add
005	750-3193	BUSH	£17.14	Add
006	01001169	ROLLER-GRASS CATCHER	N/A	POA
007	01001745	PIN 5/8X1.2LG	£14.09	Add
008	710-3034	BOLT:CRG:3/8-16:1.25:GR1	£8.36	Add
009	710-0944	SCREW HEX CAP	£4.50	Add
010	01004304	SCREW SELF TAPP 3/8-16 X.50	N/A	POA
011	01005869P	HANDLE, LATCH	£51.03	Add
012	01006693	CHUTE-DEFLECTOR BLK PLAS.	£56.67	Add
013	01006748	CHUTE DEFLECTOR BRACKET	£81.39	Add
014	01008049	CARRIAGE BOLT 3/8-16X4.00	£13.16	Add
015	01008225	PUSH NUT .335X.780X.700	N/A	POA
016	01008644	FINGER GUARD	£32.35	Add
017	01008790	RIGHT ROLLER MOUNT BRACKET	N/A	POA
018	02000109	BLOCK PILLOW LIFT	£87.10	Add
019	02002800	J-HOOK	£35.65	Add
020	02005195	CHUTE BAFFLE	£53.09	Add
021	02005200	DECK:SKIRT	N/A	POA
022	02005201	LH FRONT ADJUSTABLE SKIRT	N/A	POA
023	02005694	ADJUSTABLE BAFFLE	£85.66	Add
024	634-3159	WHEEL ASSY´S 5"	£33.61	Add
025	680-00117	DECK ASM.	N/A	POA
026	703-06871	BELT COVER	N/A	POA
027	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
028	711-05159	SHAFT- BALL WHEEL MOUNT	£43.05	Add
029	712-04065	NUT	£4.02	Add
030	712-0641	NUT	£6.47	Add
031	712-3083	NUT	£2.79	Add
032	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
033	728-04033	RIVET 3/16	N/A	POA
034	731-3005	ROLLER	£42.43	Add
035	732-04797	SPR:TORSN:180:.639x2.16x.12:YZ	£11.43	Add
036	736-0760	WASHER	£4.01	Add
037	737-04003D	NOZ:DECK:WATER	£19.14	Add
038	747-3384	ROD:DFL:CHUT	£14.85	Add
