MTD014655

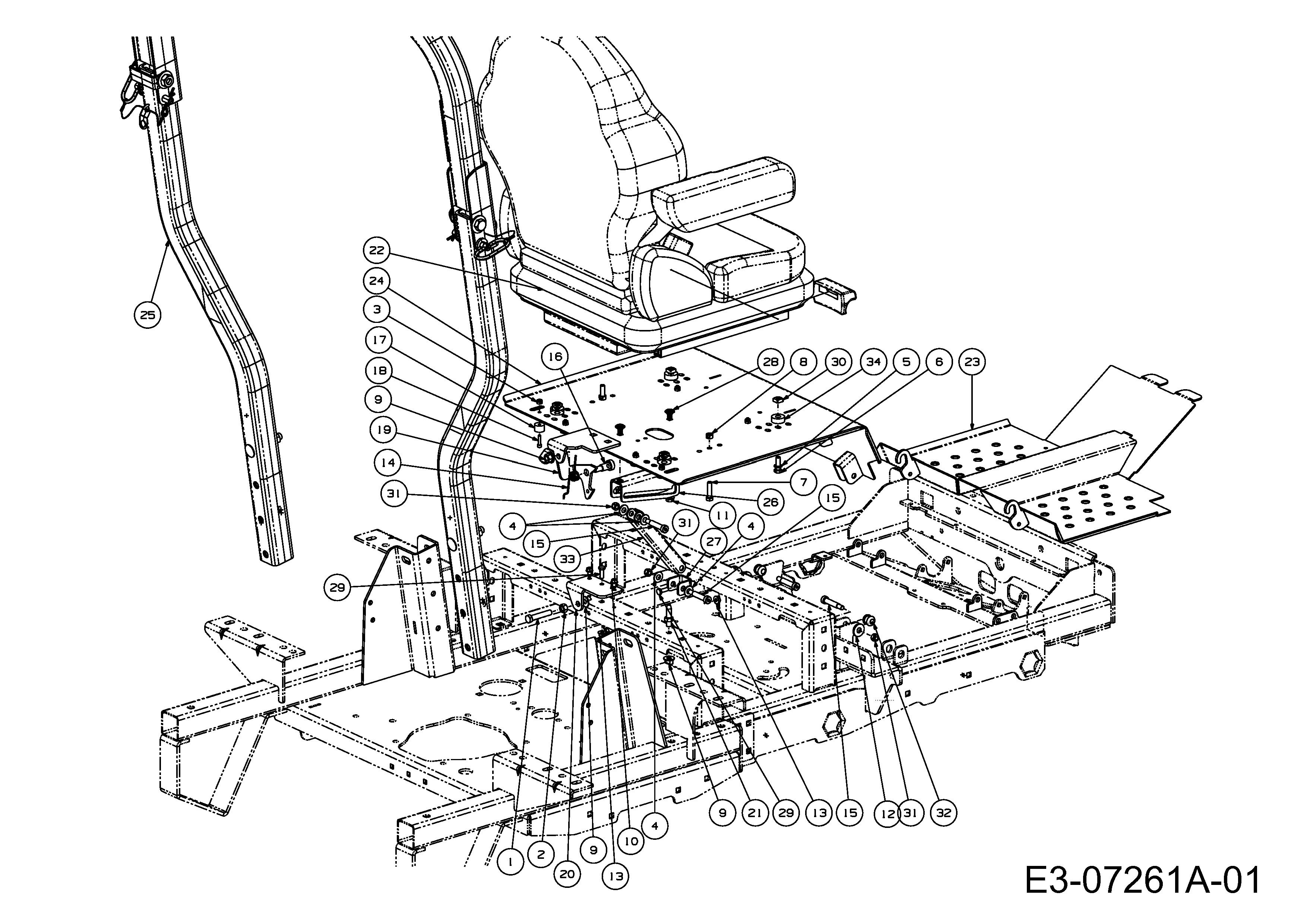

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00002528	SCREW-HEX CAP 3/8-16X2.00	£21.27	Add
002	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
003	712-0161	NYLOK NUT #10-24	£6.05	Add
004	00012158	WASHER .406X.813X.063	N/A	POA
005	00012168	LOCK WASHER	£15.39	Add
006	00012180	HEX SCREW 5/16-18 X 1.00	£20.12	Add
007	00013116	NUT-HEX 5/16-18X1-1/4	£17.41	Add
008	00022547	FLANGED NUT 5/16-18:GRF:NYLON	£4.50	Add
009	00022560	NO LONGER AVAILABLE	N/A	POA
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	712-3004A	HEX FLANGE NUT	£2.97	Add
012	736-3052	WASH:FLAT:.406 X 1.00 X .105	£3.77	Add
013	712-3027	LOCK NUT	£2.79	Add
014	01008140P	SPRING-HANDLE LH	£26.34	Add
015	01009459	SHOULDER BOLT 5/16-18X.37X1.50	N/A	POA
016	02002091	SHOULDER BOLT 3/8-16X.50X.75	N/A	POA
017	02002963	BUMP STOP WITH WASHER	N/A	POA
018	02002964	FLAT HEAD SCREW 10-24 X .750	N/A	POA
019	02003732	ROD-LOCKOUT	N/A	POA
020	02003738	MOUNT LATCH BRACKET	N/A	POA
021	02003745	CENTER ADJUST STUD	N/A	POA
022	02004228	SUSPENSION SEAT COMPL.	N/A	POA
023	680-00087	BODY-FRONT	N/A	POA
024	680-00096	PLATE, SEAT SPRING	N/A	POA
025	680-00150	ROPS ASM. 24" FOLDING WIDE	£488.52	Add
026	703-07490	SEAT SUPPORT LOCK BRACKET	N/A	POA
027	703-07491	SEAT LINK PIVOT MOUNT BRACKET	N/A	POA
028	710-0260A	BOLT:CRG: 5/16-18:.62 GR5	£2.93	Add
029	710-3015	SCREW HEX CAP	£3.33	Add
030	712-04190	NUT 5/16-18	£6.39	Add
031	712-0429	NUT HEX.INS L NUT	£4.92	Add
032	735-04159	GROMMET .38X.75X.75	N/A	POA
033	749-04613	LINK TUBE	N/A	POA
034	750-3119	SPACER	£13.99	Add
