MTD012475

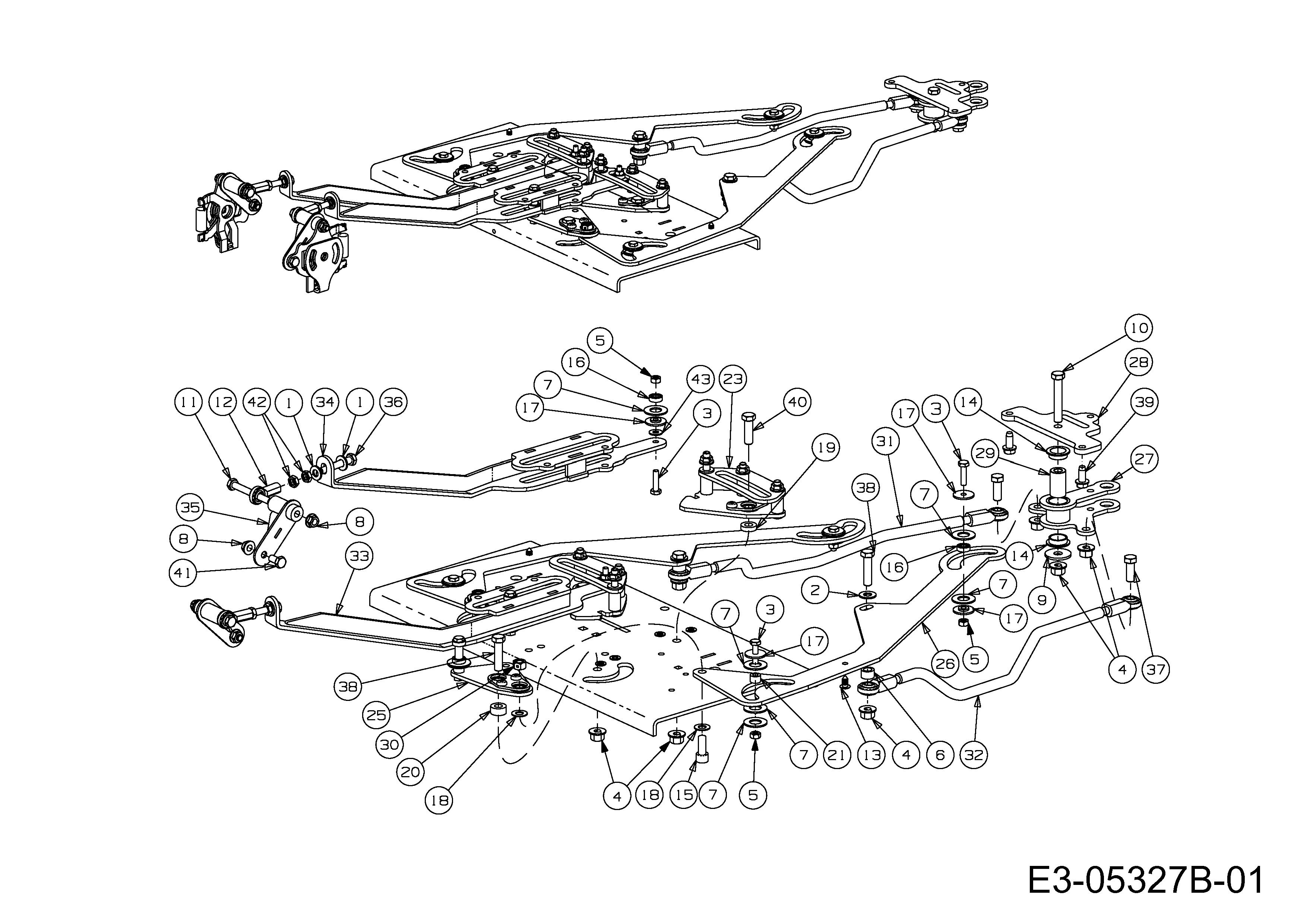

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00009812	WASHER .344X.688X.063	N/A	POA
002	00012158	WASHER .406X.813X.063	N/A	POA
003	00013416	HEX SCREW 1/4-20X1.00	N/A	POA
004	00022560	NO LONGER AVAILABLE	N/A	POA
005	00023041	COUNTER LOCK NUT 1/4-20	N/A	POA
006	00081551	SPACER .407X.625X.375	N/A	POA
007	01000101	WASHER .550X1.25X.068	N/A	POA
008	712-3004A	HEX FLANGE NUT	£2.97	Add
009	736-0133	WASH:FLAT:.411 X 1.25 X .100	£3.87	Add
010	01001366	HEX SCREW	£25.15	Add
011	01001972	HEX SCREW 5/16-18X2.75	N/A	POA
012	01008410P	END-5/16 ROD RH	£49.47	Add
013	01008801	RIVET 1/4X.625	N/A	POA
014	02003163	FLANGE BEARING	N/A	POA
015	02003309	SOCKET HEAD SCREW	N/A	POA
016	02003377	BALL BEARING	£27.44	Add
017	02003379	SHOULDER SPACER .251X1.00X.06	N/A	POA
018	02005054	SPACER .381X.750X.040	N/A	POA
019	02005055	SPACER .381X.75X.150	N/A	POA
020	02005056	SPACER .381X.750X.312	N/A	POA
021	02005057	SPACER .256X.500X.330	N/A	POA
022	02005290	LH SPEED CONTROL CAM ASM.	N/A	POA
023	02005291	RH SPEED CONTROL CAM ASM.	N/A	POA
024	02005292	LH STEERING PIVOT ASM.	N/A	POA
025	02005293	RH STEERING PIVOT ASM.	N/A	POA
026	02005463	CONTROL LINK PLATE	N/A	POA
027	02005468	FRONT STEERING PIVOT ASSY.	£136.52	Add
028	02005482	STEERING PIVOT MOUNT PLATE	£60.20	Add
029	02005483	SPACER	£48.94	Add
030	02005566	NUT HEX CENTER LOCK 3/8-16	N/A	POA
031	603-04618	CONTROL ROD ASSY. LH	£94.74	Add
032	603-04619	CONTROL ROD ASSY. RH	£94.74	Add
033	680-00115	PUMP CONTROL ARM ASM.	N/A	POA
034	680-00116	RH PUMP CONTROL ARM ASM.	N/A	POA
035	680-00118	PUMP CONTROL SPACER ASM.	N/A	POA
036	710-05131	HEX SCREW 5/16-24X2.00	N/A	POA
037	710-0514	HEX BOLT	£3.81	Add
038	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
039	710-1260A	SCREW	£4.00	Add
040	710-3005	BOLT	£3.24	Add
041	710-3025	HHCS:5/16-18:.625:GR5:STD	£3.31	Add
042	712-3025	HEX JAM NUT 5/16-24 GR 5	£4.37	Add
043	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
