MTD012477

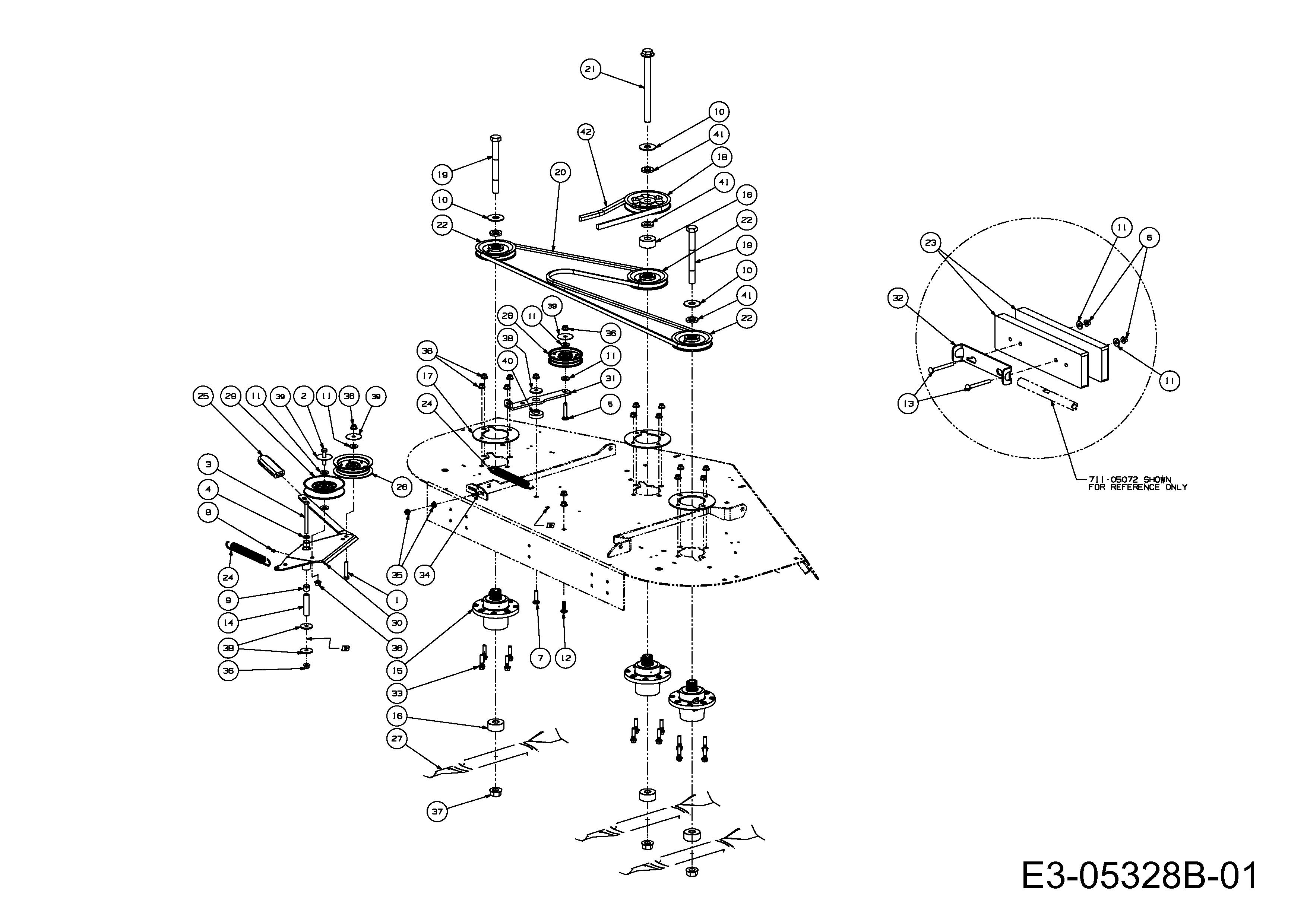

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012477

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 00002528 SCREW-HEX CAP 3/8-16X2.00 £21.27 Add
002 00008495 HEX SCREW 3/8-16X1.75 N/A POA
003 00011925 HEX SCREW 3/8-16X4.00 N/A POA
004 00012158 WASHER .406X.813X.063 N/A POA
005 00014270 CARRIAGE BOLT 3/8-16X2.00 N/A POA
006 00022560 NO LONGER AVAILABLE N/A POA
007 00030276 BOLT-CARRIAGE 3/8X1.5 RZ CTP £14.89 Add
008 00060078 grease nipple N/A POA
009 01000308 SLEEVE BEARING N/A POA
010 736-3014 WASHER £10.72 Add
011 736-3052 WASH:FLAT:.406 X 1.00 X .105 £3.77 Add
012 710-3034 BOLT:CRG:3/8-16:1.25:GR1 £8.36 Add
013 710-0521 SCREW HHCS:3/8-16:3.00:GR8:STD £5.19 Add
014 01003245 SPACER £77.08 Add
015 01003532A SPINDEL ASSY. DECK £275.74 Add
016 01004415 SPACER-BLACE SPINDLE £28.32 Add
017 01004478 SUPPORT PLATE N/A POA
018 01005203 PULLEY-DECK DRIVE N/A POA
019 01005213 BOLT BLADE £26.87 Add
020 01005376 BELT-V A SEC X 122.3 PREMIUM £99.24 Add
021 01005388 BOLT-BLADE 3/4-16 X 9.0 £35.50 Add
022 01005616 PULLEY-DECK DRIVE £137.06 Add
023 02002426 BAR- WEIGHT CAT DIESEL £158.92 Add
024 02003712 EXTENSION SPRING £20.18 Add
025 02003740 FLAT GRIP N/A POA
026 02004447 IDLER PULLEY £36.11 Add
027 02005019 BLADE-HI LIFT 21.0" 60" TNK CT £86.95 Add
028 02005077 IDLER PULLEY £34.19 Add
029 02005079 IDLER PULLEY £44.60 Add
030 02005509 DOUBLE IDLER ARM N/A POA
031 703-07010 DECK IDLER ARM N/A POA
032 703-07740 WEIGHT BAR BRACKET N/A POA
033 710-04829 HEX FLANGE BOLT £11.88 Add
034 710-0262 BOLT:CRG:5/16-18:1.50:GR2 £4.00 Add
035 712-04063 FLANGED NUT £4.20 Add
036 712-04065 NUT £4.02 Add
037 712-3078 NUT HEX FLANGE 3/4-16 £11.32 Add
038 736-0227 WASH:FLAT:.390x1.500x.134 £10.28 Add
039 736-3040 FLAT WASHER £13.16 Add
040 738-04376 SHOULDER SPACER .854X.280 N/A POA
041 750-05553 SPACER .812 ID X .218 LG £12.50 Add
042 754-04256A BELT-PTO B SEC 111.2 B/M £184.32 Add
