MTD014656

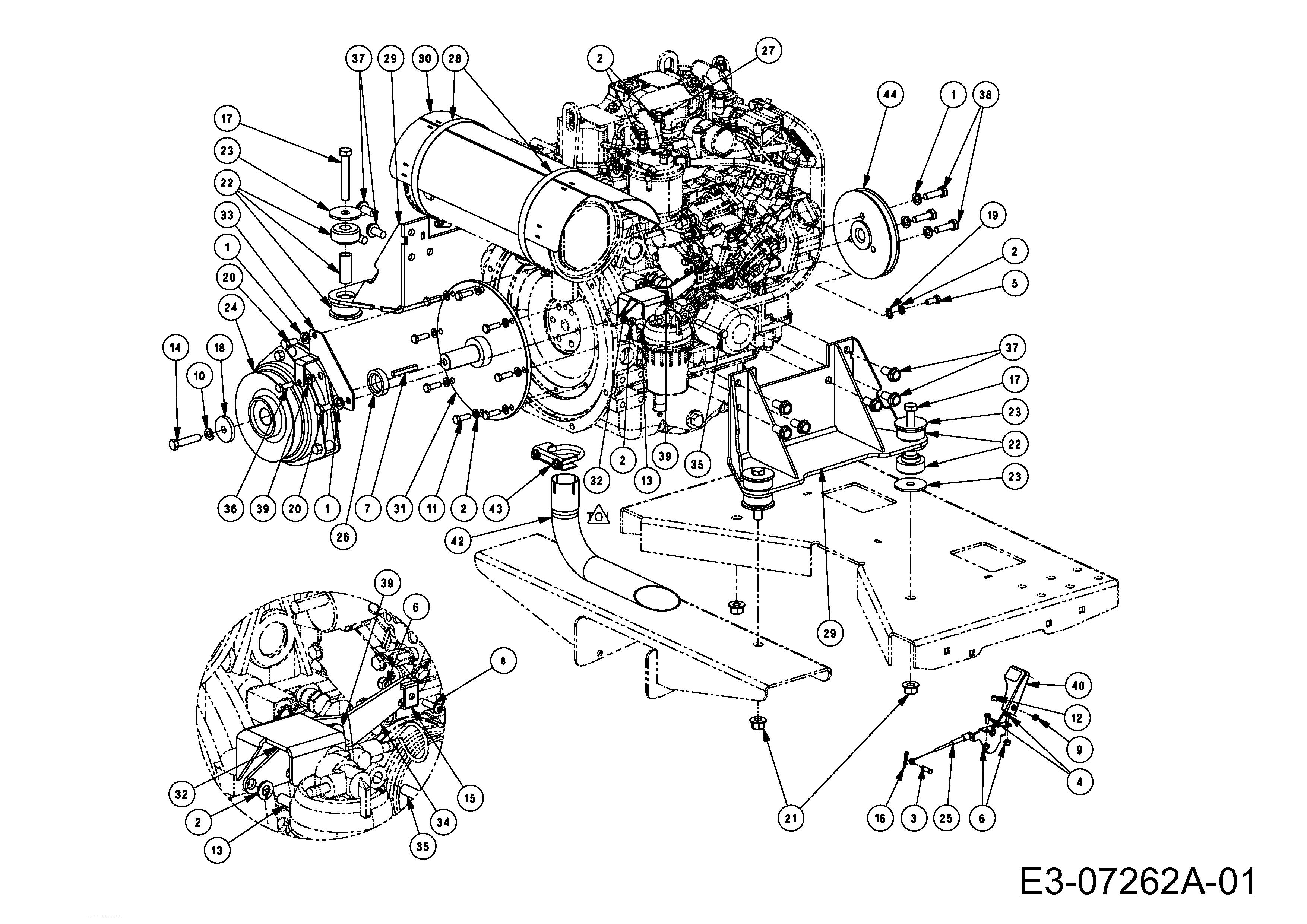

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014656

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 00012062 WASHER 10x17.8x3.6 N/A POA
002 00012168 LOCK WASHER £15.39 Add
003 00012609 PIN CLEVIS £16.79 Add
004 00013669 HEX FLANGE SCREW #10-32X.500 N/A POA
005 00014517 HEX SCREW M8-1.25X18 N/A POA
006 00014608 NUT 10-32 N/A POA
007 00021517 KEY .250X.250X2.00 N/A POA
008 00030906 MACHINE SCREW N/A POA
009 00060056 NUT-HEX SS #8-32 £18.87 Add
010 736-0171 WASHER £2.93 Add
011 710-3206A HHCS:M8-1.25:25.0:GR8.8:STD £14.44 Add
012 710-3217 SCR:MACH:#8-32:0.375:TRUSPHI £3.33 Add
013 01000981 HEX SCRREW M8-1.25X20 N/A POA
014 01001082 HEX SCREW 7/16-20X2.00 N/A POA
015 751B213146 CASING CLAMP (OBSOLETE) (OBSOLETE) N/A
016 714-0104 PIN INTERNAL COTTER £2.78 Add
017 01003113 SCREW 1/2-13X3.25 £12.94 Add
018 736-04131 washer £30.79 Add
019 01005851 WASHER N/A POA
020 01009616 HEX SCREW M10-1.5X20 N/A POA
021 01010119 FLANGE TOP LOCK NUT 1/2-13 N/A POA
022 02001035 ISOLATOR ENGINE £75.69 Add
023 02001098 WASHER £49.11 Add
024 02001113 BRAKE CLUTCH £516.17 Add
025 02001133P THROTTLE CONTROL CABLE £86.57 Add
026 02002158 SPACER 1.14X1.75X.438 N/A POA
027 02002402 HEX SCREW M8-1.25X30 N/A POA
028 02002425 CLAMP WORM £57.87 Add
029 680-00062 ENGINE BRACKET N/A POA
030 680-00109 SHIELD - MUFFLER HEAT £144.95 Add
031 680-00122 COUPLING DISC N/A POA
032 680-00214 MOUNTING SEPARATOR N/A POA
033 703-07329 CLUTCH RETAINER BRACKET £56.12 Add
034 703-07396 THROTTLE MOUNT BRACKET N/A POA
035 710-0176 HHCS:5/16-18:2.75:GR5:STD £6.11 Add
036 710-0376 SCREW HEX CAP 5/16 £9.02 Add
037 710-05079 HHCS:FLG:M12-1.75x25:GR 8.8 N/A POA
038 710-1313 HHCS:M10-1.5:35mm:GR8.8:STD £20.99 Add
039 712-04063 FLANGED NUT £4.20 Add
040 731-04914 KNOB:THROTTLE CONTROL £34.92 Add
042 751-11143 ELBOW EXHAUST PIPE N/A POA
043 751-11265 MUFFLER CLAMP N/A POA
044 756-04402 DRIVE PULLEY N/A POA
