Choke control, Engine pulley, Throttle cable, Engine accessories

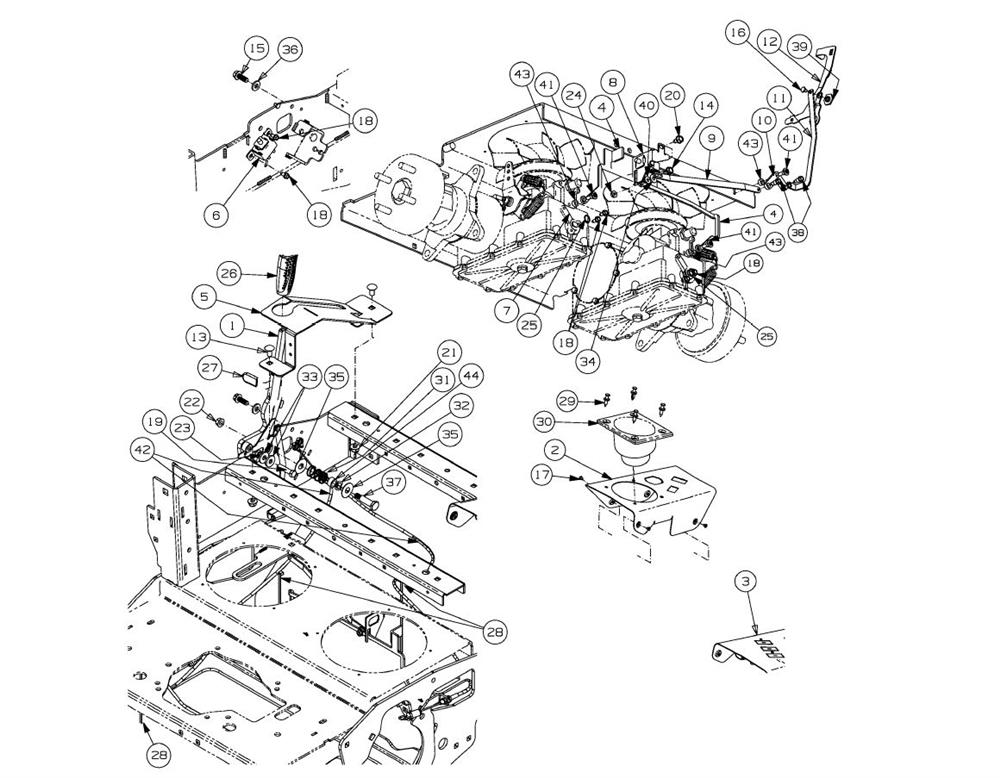

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Choke control, Engine pulley, Throttle cable, Engine accessories

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	680-00227A	PLATE	N/A	POA
002	703-08607	PLATE	N/A	POA
003	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
004	710-0425	SCR:MACH:#10-24:0.625:TRUSPHI	£8.11	Add
005	710-04377	SCREW 1/16-20X2.75	£11.05	Add
006	710-04748	SCREW HEX HEAD CAP	£9.89	Add
007	710-05376	CARRIAGE BOLT	£13.16	Add
008	710-06012	SCREW	N/A	POA
009	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
010	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
011	711-1637	STUD-ACTUATOR	£19.77	Add
012	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
013	7120161	NUT HEX	£4.43	Add
014	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
015	712-04063	FLANGED NUT	£4.20	Add
016	712-04065	NUT	£4.02	Add
017	712-0431	NUT	£3.20	Add
018	712-04312	NUT	£8.36	Add
019	712-0711	NUT	£3.07	Add
020	714-0118	KEY:SQ:1/4 X 1.50	£5.50	Add
021	717-04967	CLUTCH ELECTRIC PTO	£687.40	Add
022	721-04516	PULLEY CAP	£20.78	Add
023	725-0157	NO LONGER AVAILABLE	N/A	POA
024	726-04124	CLAMP	£18.72	Add
025	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
026	732-04915A	SPRING-BRAKE TENSION	£29.18	Add
027	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
028	736-3017	WASH:FLAT:.470X1500X.225	£3.10	Add
029	736-3082A	WASHER FLAT	£10.48	Add
030	737-0146	FITTING-GREASE	£4.11	Add
032	738-1126	SCREW-SHLDR	£9.25	Add
033	738-3102	SHOULDER SCREW 7/16 X 14	£27.52	Add
034	741-04555	SLEEVE BEARING	£12.48	Add
035	746-04812	CABLE CHOKE	£64.20	Add
036	746-04840	THROTTLE CABLE 42"	£83.59	Add
037	747-05707	ROD SHIFT LEVER	£8.36	Add
038	751-10291A	HOSE-OIL DRAIN 13,75 LG	£60.02	Add
039	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
040	751-12282	HOSE ASM ROLLOVER	£99.17	Add
041	751-12520A	MUFFLER KAWASAKI FX850	£199.26	Add
042	754-04320	V BELT	£69.39	Add
043	756-04382	PULLEY	£92.99	Add
044	756-04487	TENSION IDLER	£55.60	Add
