Control cable brake, Control elements for brake, position neutral, seat

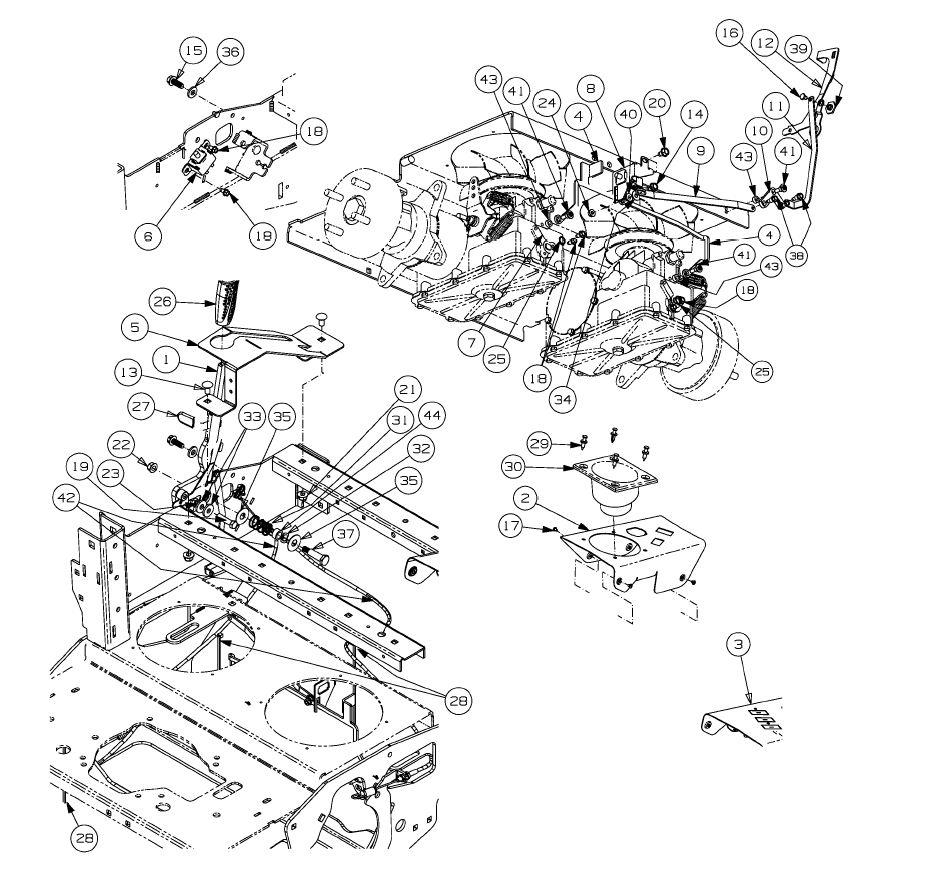

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Control cable brake, Control elements for brake, position neutral, seat

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 680-00339 PLATE N/A POA
002 703-08123 PLATE N/A POA
003 703-08482 PLATE N/A POA
004 703-09587A BRACKET £35.00 Add
005 703-09592 BRACKET N/A POA
006 703-09604 PLATE N/A POA
007 703-09665 0 N/A POA
008 703-09701 0 N/A POA
009 703-09703 ARM ACTUATOR LINK £28.16 Add
010 703-09731 LEVER NEUTRAL CONTROL £44.95 Add
011 703-09739A LINK NEUTRAL ARM £33.69 Add
012 703-09912 LEVER RELEASE VALVE £64.92 Add
013 710-0389 BOLT:CRG:3/8-16:.750:GR5 £11.63 Add
014 710-04666 HHFLG:1/4-20:.75:GR5 £7.18 Add
015 710-04683C SCREW £2.56 Add
016 710-05132 HEX HEAD CAP SCREW £19.04 Add
017 710-05421 SCREW £10.03 Add
018 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
019 710-06021 BOLT £11.48 Add
020 710-0607 SELF TAP SCREW £4.71 Add
021 712-04065 NUT £4.02 Add
022 712-0431 NUT £3.20 Add
023 712-3008 NUT:JAM:3/8-16:GR5 £3.26 Add
024 712-3027 LOCK NUT £2.79 Add
025 716-0114 RING:RET:.56 DIA SHAFT £3.58 Add
026 720-04139B GRIP:CUB £25.52 Add
027 720-0433 GRIP:SEAT:ADJUSTMENT:YELLOW £10.97 Add
028 725-0157 NO LONGER AVAILABLE N/A POA
029 728-0199 RIVET (2-PARTS): .3125 £5.19 Add
030 731-08438 CUP HOLDER £17.71 Add
031 732-04481 SPR: COMP: 844 X.970 X 1.500 £12.50 Add
032 736-0232 WAVE WASHER £3.69 Add
033 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £3.47 Add
034 736-0342 FLAT WASHER £2.97 Add
035 736-04237 FLAT WASHER £12.50 Add
036 736-3004 FLAT WASHER £2.77 Add
037 738-0213 SCREW-SHLD £7.41 Add
038 738-04425 SCREW SHOULDER £2.38 Add
039 738-04446 SPACER HEX M6 £61.28 Add
040 738-04483 SPCR:SHLDR:.375X.625X.20 £5.00 Add
041 738-0706C SHOULDER SCREW £9.95 Add
042 746-05103 BRAKE CABLE N/A POA
043 750-05297 SPACER £15.15 Add
044 750-06360 SPACER £16.33 Add
