Pedals

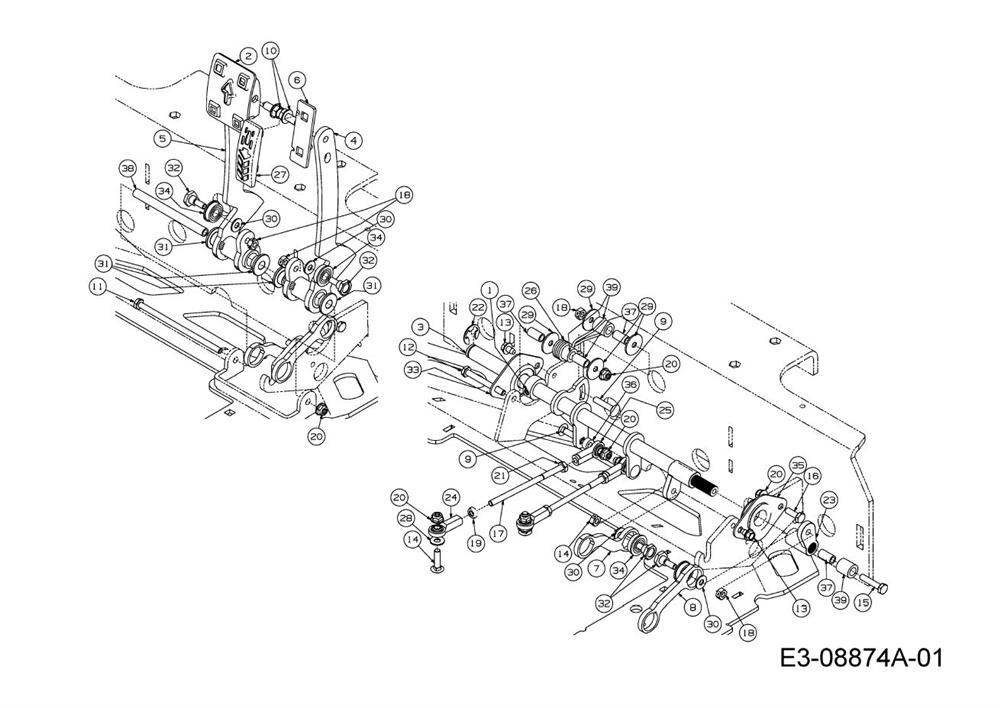

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Pedals

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 01006350 COLLAR SHAFT £25.85 Add
002 603-04752 PEDAL FORWARD £102.78 Add
003 680-00154 STEERING GEAR L/H £163.87 Add
004 680-00187B PEDAL ASM REVERSE £52.69 Add
005 680-00189B PEDAL FORWARDS £80.43 Add
006 703-08518 BRACKET REVERSE PEDAL £24.91 Add
007 703-08782A LEVER £45.81 Add
008 703-08783A LEVER £41.88 Add
009 710-0111 NO LONGER AVAILABLE N/A POA
010 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
011 710-05418 SCREW HEX HEAD 1/4-20*5.0 £16.85 Add
012 710-0641 SCREW HHCS:1/4-20:2.25:GR5:STD £3.19 Add
013 710-0653 HEX SCREW, 1/4-20 X 3/8" £4.22 Add
014 710-0932A SCR:CRG:1/4-20:1.000:GR5 £3.39 Add
015 710-1062 BOLT £11.98 Add
016 710-3015 SCREW HEX CAP £3.33 Add
017 710-05493 SCEW HEX M5X16 £1.73 Add
018 712-0291 LOCK-NUT £2.77 Add
019 712-0314 NUT:HEX JAM:1/4-28 GR2 £7.92 Add
020 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
021 712-04326 JAM NUT £8.79 Add
022 716-0106A RING E TYPE .625 DIA SHAFT £3.33 Add
023 718-04858A ARM SHAFT PEDAL £35.32 Add
024 723-04077 ROD END R/H £72.08 Add
025 723-04088 ROD END L/H £58.52 Add
026 732-04855 SPR:EXTN:.67 DIA X 5.50 LG £7.75 Add
027 735-04113 PAD:FOOT:REV £11.55 Add
028 736-04446 WASH:FLAT:.25X.630X.0515 HT £4.11 Add
029 736-04511 WASHER £8.19 Add
030 736-3020 WASH:FLAT:.271 X.630 X.065 £2.98 Add
031 738-04503 SPCR SHLDR 38*62*1.0 £16.41 Add
032 738-1023A SHOULDER SCREW £13.16 Add
033 741-04566 BALL BEARING £29.12 Add
034 741-04568 BEARING FLANGED £60.48 Add
035 741-04569 BALL BEARING £41.02 Add
036 750-05297 SPACER £15.15 Add
037 750-05369 SPACER £13.16 Add
038 750-05666 SPACER £30.44 Add
039 750-0807 SPCR: .385 X.625 X.700 £3.07 Add
