Parts list

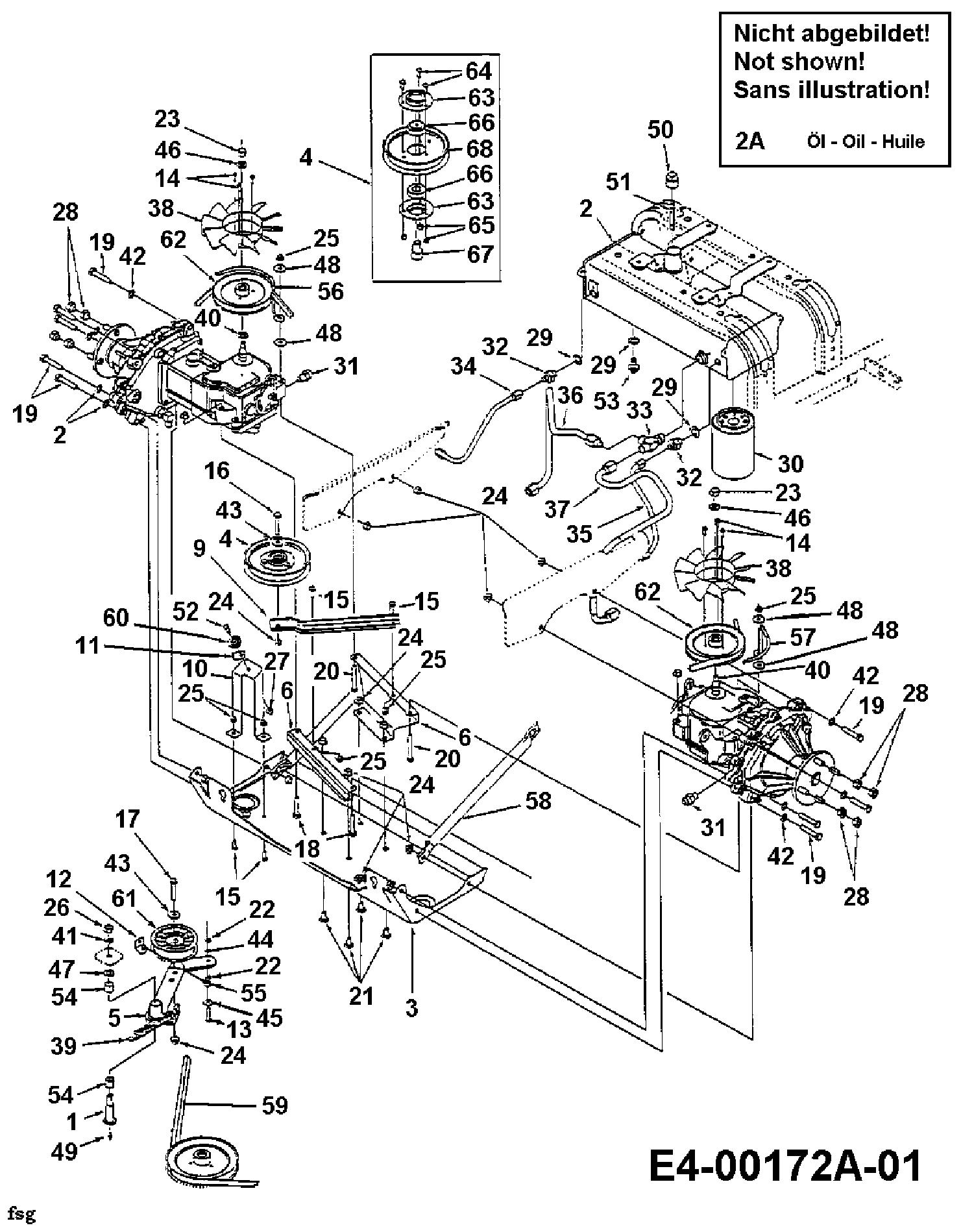

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
738-3108
|
BOLT-SHOULDER 01000505
|
£60.78
|
Add
|
|
002
|
603-0344
|
TANK ASSY.-HYDRAULIC
|
£293.64
|
Add
|
|
003
|
603-0358B
|
FLOW SLIDE ASSY.
|
N/A
|
POA
|
|
004
|
603-0362
|
PULLEY
|
£217.04
|
Add
|
|
005
|
603-0377A
|
ARM ASSY.,ILDER
|
N/A
|
POA
|
|
006
|
603-0450
|
SUPPORT ASSY.,PUMP
|
N/A
|
POA
|
|
009
|
703-2888
|
ARM IDLER
|
£33.68
|
Add
|
|
010
|
703-3168
|
BRACKET,PULLEY MOUNTING
|
N/A
|
POA
|
|
011
|
703-3169
|
BRACKET,CABLE
|
N/A
|
POA
|
|
012
|
703-3174
|
BRACKET,CABLE
|
N/A
|
POA
|
|
013
|
710-0428
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
014
|
710-1189
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
015
|
710-3008
|
HEX BOLT
|
£3.03
|
Add
|
|
016
|
710-3011
|
BOLT 3/8 X 2-1/4 TYPE 5
|
£5.52
|
Add
|
|
017
|
710-0347
|
HEX SCR
|
£3.72
|
Add
|
|
018
|
710-3103
|
SCRE.HHCS:5/16-18:2.00:GR5:STD
|
£3.16
|
Add
|
|
019
|
710-3144
|
SCREW
|
£3.28
|
Add
|
|
020
|
710-3156
|
BOLT-HEX
|
N/A
|
POA
|
|
021
|
710-3178
|
BOLT SHORT NECK CARR
|
£11.46
|
Add
|
|
022
|
712-0138
|
NUT
|
£3.03
|
Add
|
|
023
|
712-0333
|
NUT:HEX:1/2-20:GR2
|
£3.20
|
Add
|
|
024
|
712-0431
|
NUT
|
£3.20
|
Add
|
|
025
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
026
|
712-3019
|
NUT
|
£14.44
|
Add
|
|
027
|
712-0117
|
NUT:CTR LOCK:1/4-28:GR A
|
£3.19
|
Add
|
|
028
|
712-3050
|
NUT:LUG:7/16-14
|
£7.47
|
Add
|
|
029
|
721-0223
|
SEAL,DRAIN PLUG
|
£20.19
|
Add
|
|
02A
|
737-3120
|
FLUID-DRIVE SYSTEM
|
£65.50
|
Add
|
|
030
|
723-3071
|
FILTER ELEMENT,OIL
|
£92.95
|
Add
|
|
031
|
727-3100
|
FITTING,CONNECTOR
|
N/A
|
POA
|
|
032
|
727-3116
|
FITTING,CONNECTOR
|
N/A
|
POA
|
|
033
|
727-3118
|
FITTING,TEE
|
N/A
|
POA
|
|
034
|
727-3120
|
TUBE,INLET LH
|
N/A
|
POA
|
|
035
|
727-3121
|
TUBE,INLET RH
|
N/A
|
POA
|
|
036
|
727-3122
|
TUBE-OUTLET LH
|
N/A
|
POA
|
|
037
|
727-3123
|
TUBE,OUTLET RH
|
N/A
|
POA
|
|
038
|
731-1449A
|
FAN:BLADE:10
|
£22.24
|
Add
|
|
039
|
732-0478
|
EXT. SPRING DECK CONTROL
|
£16.63
|
Add
|
|
040
|
732-0729
|
CIRCLIP
|
£2.98
|
Add
|
|
041
|
736-0171
|
WASHER
|
£2.93
|
Add
|
|
042
|
736-0185
|
FLAT WASHER (RED)
|
£3.59
|
Add
|
|
043
|
736-0258
|
WASHER:FLAT:.385 X 1.0 X.135
|
£3.47
|
Add
|
|
044
|
736-0329
|
L. WASHER
|
£3.26
|
Add
|
|
045
|
736-0342
|
FLAT WASHER
|
£2.97
|
Add
|
|
046
|
736-0921
|
WASHER:LOCK:1/2:REGULAR DUTY
|
£2.98
|
Add
|
|
047
|
736-3015
|
WASH:FLAT: .469 x .875 x .105
|
£18.36
|
Add
|
|
048
|
736-3089
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
049
|
737-0280
|
FITTING-GREASE
|
£13.79
|
Add
|
|
050
|
737-3069
|
OIL- PLUG
|
N/A
|
POA
|
|
051
|
737-3070
|
PIPE-DIPSTICK
|
N/A
|
POA
|
|
052
|
738-0924
|
HEX SCREW
|
£2.90
|
Add
|
|
053
|
738-0940
|
PLUG,OIL DRAIN
|
£4.98
|
Add
|
|
054
|
741-3063
|
BUSHING
|
£38.18
|
Add
|
|
055
|
746-3080
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
056
|
747-3360
|
ROD,BELT RATAINING RH
|
£24.38
|
Add
|
|
057
|
747-3361
|
ROD,BELT RETAINING LH
|
£24.38
|
Add
|
|
058
|
749-3040
|
STRUT,FRAME
|
N/A
|
POA
|
|
059
|
754-3076
|
V-BELT, TRANSMISSION DRIVE
|
£85.81
|
Add
|
|
060
|
756-0625
|
cable idler wheel
|
£10.52
|
Add
|
|
061
|
756-0627D
|
PUL:IDLR:FLAT 3.5 OD
|
£27.53
|
Add
|
|
062
|
756-0974
|
PULLEY
|
£78.05
|
Add
|
|
063
|
703-2907
|
CUP,BEARING
|
£13.77
|
Add
|
|
064
|
710-0751
|
BOLT 069
|
£3.39
|
Add
|
|
065
|
712-0324
|
HEX. INS L NUT
|
£3.69
|
Add
|
|
066
|
741-0600
|
BRG BALL 17x40x12 6203 DS
|
£18.36
|
Add
|
|
067
|
750-3176
|
SPACER,IDLER ARM PULLEY
|
N/A
|
POA
|
|
068
|
756-3085
|
PULLEY,IDLER 5.0IN
|
N/A
|
POA
|
