MTD016299

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

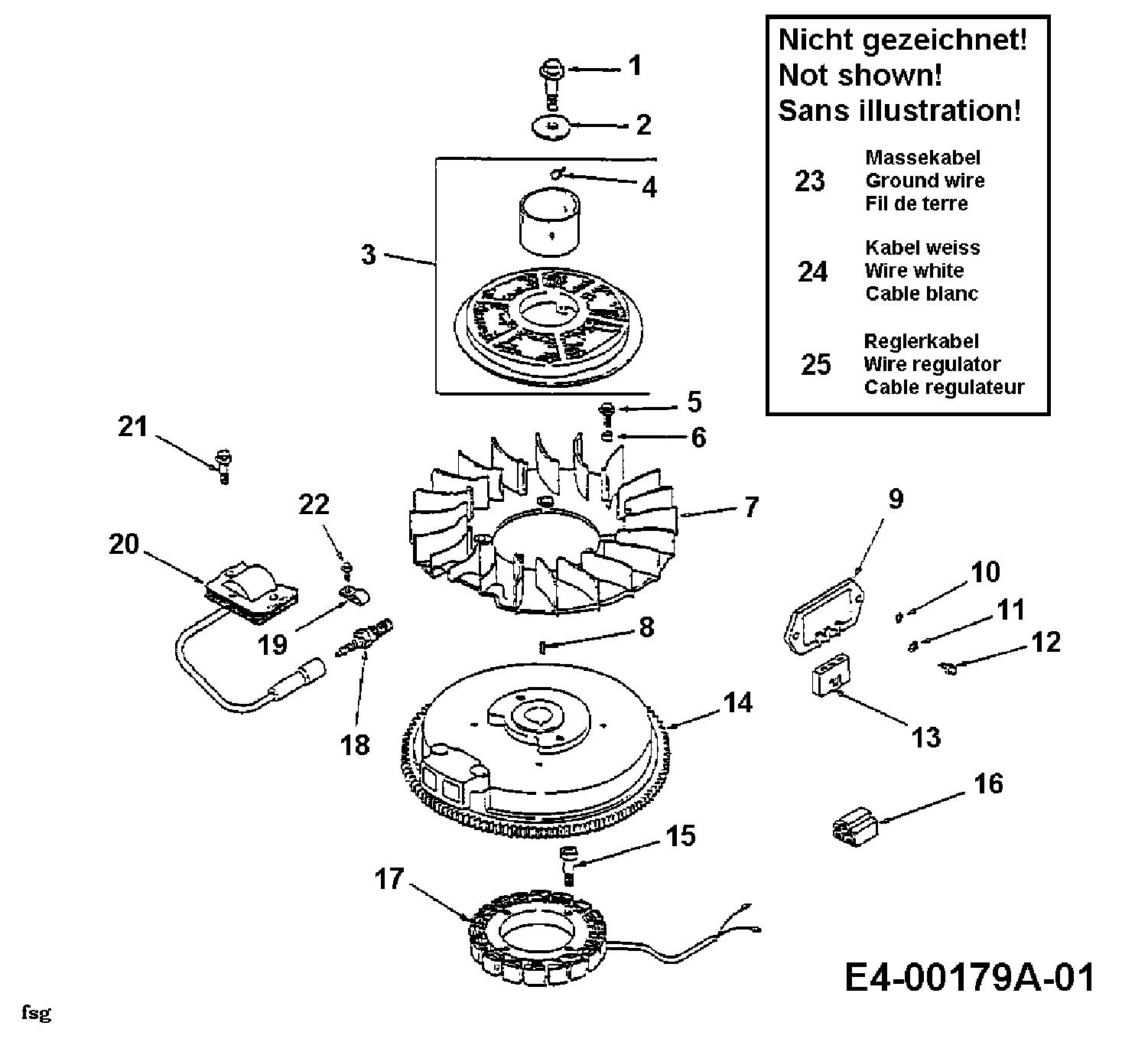

Ref	No	Description	Price
001	KH-12-086-14	SCREW, HEX FLANGE	N/A	POA
002	KH-12-468-03	WASHER	N/A	POA
003	KH-12-109-03	CUP, WITH SCREEN	N/A	POA
004	KH-M-0545010	SCREW,HEX FLANGE	£2.91	Add
005	KH-M-0639016	SCREW, HEX FLANGE	£3.96	Add
006	KH-25-086-47	BOLT, SHOULDER	£6.22	Add
007	KH-12-157-03	FAN	£63.29	Add
008	KH-X-42-15	KEY	£7.23	Add
009	KH-41-403-09	RECTIFIER-REGULATOR 15 AMP	£185.51	Add
010	KH-X-22-11	WASHER	N/A	POA
011	KH-X-25-5	WASHER	N/A	POA
012	KH-M-0639016	SCREW, HEX FLANGE	£3.96	Add
013	KH-236602	CONNECTOR, RECTIFIER-REGULATOR	£17.21	Add
014	KH-12-025-33	Flywheel magneto	N/A	POA
015	KH-M-0548025	BOLT	N/A	POA
016	KH-48-155-01	CONNECTOR	£18.52	Add
017	KH-54-755-09	KIT-15 AMP. STATOR	£238.30	Add
018	BKR5E-NGK	SPARK PLUG	£5.27	Add
019	KH-X-728-1	CLIP-LEAD	£7.35	Add
020	KH-12-584-01	MODULE,IGNITION	N/A	POA
021	KH-M-0545020	SCREW,HEX FLANGE	£4.11	Add
022	KH-M-0545010	SCREW,HEX FLANGE	£2.91	Add
023	KH-25-518-29	LEAD, BLACK GROUND	N/A	POA
024	KH-12-518-01	WIRE	N/A	POA
025	KH-25-518-05	LEAD	N/A	POA
