Parts list

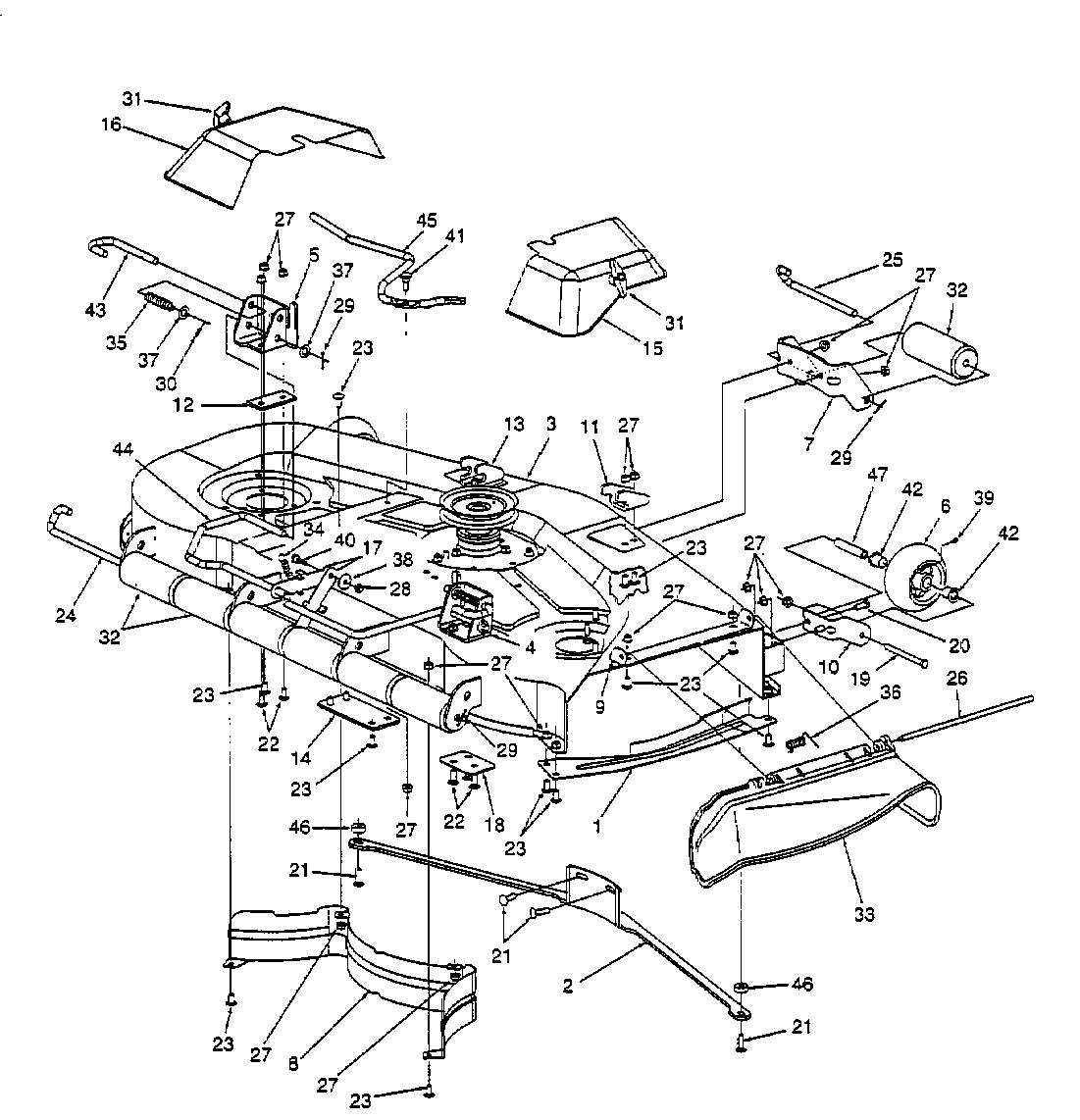

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
603-0150
|
GUARD-FLYWHEEL
|
£34.65
|
Add
|
|
002
|
603-0154
|
FRONT BAR 48"
|
N/A
|
POA
|
|
003
|
603-0348
|
HOUSING ASSY. 48"
|
N/A
|
POA
|
|
004
|
603-0350
|
BRACKET,REAR HANGER RIGHT
|
N/A
|
POA
|
|
005
|
603-0351
|
BRACKET,REAR HANGER LEFT
|
N/A
|
POA
|
|
006
|
634-3159
|
WHEEL ASSY´S 5"
|
£33.61
|
Add
|
|
007
|
703-2091A
|
BRACKET
|
N/A
|
POA
|
|
008
|
703-2161
|
BAFFLE-REAR INNER
|
£75.39
|
Add
|
|
009
|
703-2392
|
BRACKET,CHUTE MOUNTING
|
£26.11
|
Add
|
|
010
|
703-2410
|
BRACKET-WHEEL
|
N/A
|
POA
|
|
011
|
703-2430
|
BRAXKET,DECK RIGHT
|
N/A
|
POA
|
|
012
|
703-2683
|
CAM ASSY. CONTROL
|
£12.04
|
Add
|
|
013
|
703-2767
|
BRACKET,DECK LEFT
|
N/A
|
POA
|
|
014
|
703-2791
|
PLATE,SUPPORT IDLER
|
N/A
|
POA
|
|
015
|
703-2816
|
CVR:BELT:DECK 46" RH
|
£81.89
|
Add
|
|
016
|
703-2817
|
COVER,BELT LEFT
|
£81.89
|
Add
|
|
017
|
703-2929
|
LINK,DECK SUPPORT
|
N/A
|
POA
|
|
018
|
703-2988
|
BRACKET-TRANS TORQUE
|
N/A
|
POA
|
|
019
|
710-0944
|
SCREW HEX CAP
|
£4.50
|
Add
|
|
020
|
710-3001
|
SCREW HHCS:3/8-16:.880:GR5:STD
|
£3.00
|
Add
|
|
021
|
710-3034
|
BOLT:CRG:3/8-16:1.25:GR1
|
£8.36
|
Add
|
|
022
|
710-3168
|
CARRIAGE BOLT 3/8 INCH X 1 INCH
|
£7.01
|
Add
|
|
023
|
710-3178
|
BOLT SHORT NECK CARR
|
£11.46
|
Add
|
|
024
|
711-1103
|
CLEVIS PIN
|
£68.72
|
Add
|
|
025
|
711-3314
|
PIN, ROLLER
|
£33.00
|
Add
|
|
026
|
711-3318
|
HINGE PIN
|
£26.21
|
Add
|
|
027
|
712-0431
|
NUT
|
£3.20
|
Add
|
|
028
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
028
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
029
|
714-0115
|
COTTER PIN
|
£3.42
|
Add
|
|
030
|
715-3003
|
PIN, SPIRAL SPRING
|
£15.25
|
Add
|
|
031
|
720-04072A
|
HAND RELEASE
|
£4.27
|
Add
|
|
032
|
731-3005
|
ROLLER
|
£42.43
|
Add
|
|
033
|
731-3131A
|
DEFLECTOR
|
£102.98
|
Add
|
|
034
|
732-0395
|
SPRING-EXTENSION
|
£17.52
|
Add
|
|
035
|
732-0802
|
Spring
|
£5.26
|
Add
|
|
036
|
732-3070
|
SPRING-TORSION
|
£25.06
|
Add
|
|
037
|
736-0160
|
WASH:FLAT:.530x.930x.050
|
£3.39
|
Add
|
|
038
|
736-0231
|
WASHER FLAT
|
£3.58
|
Add
|
|
039
|
737-0280
|
FITTING-GREASE
|
£13.79
|
Add
|
|
03A
|
777-1426
|
LABLE-CHP:SHRD:VAC
|
£5.52
|
Add
|
|
03B
|
777S30018
|
ASSEMBLE CHUTE BEFORE USING LB
|
£6.08
|
Add
|
|
040
|
738-3024
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
041
|
738-0380
|
SCR:SHLDR:.500x.270:3/8-16
|
£10.48
|
Add
|
|
042
|
741-0487C
|
FLANGE BEARING
|
£6.18
|
Add
|
|
043
|
747-3013
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
044
|
747-3297A
|
ROD:SUPT:DECK
|
N/A
|
POA
|
|
045
|
747-3306
|
ASS`Y, LIFT HANDLE (WLDM)
|
N/A
|
POA
|
|
046
|
750-3119
|
SPACER
|
£13.99
|
Add
|
|
047
|
750-3193
|
BUSH
|
£17.14
|
Add
|
|
16A
|
777-5607
|
GRAPHIC-INFORMATION
|
N/A
|
POA
|
|
33A
|
777-1584
|
LBL: DANGER CUT FINGER
|
£24.60
|
Add
|
