MTD016508

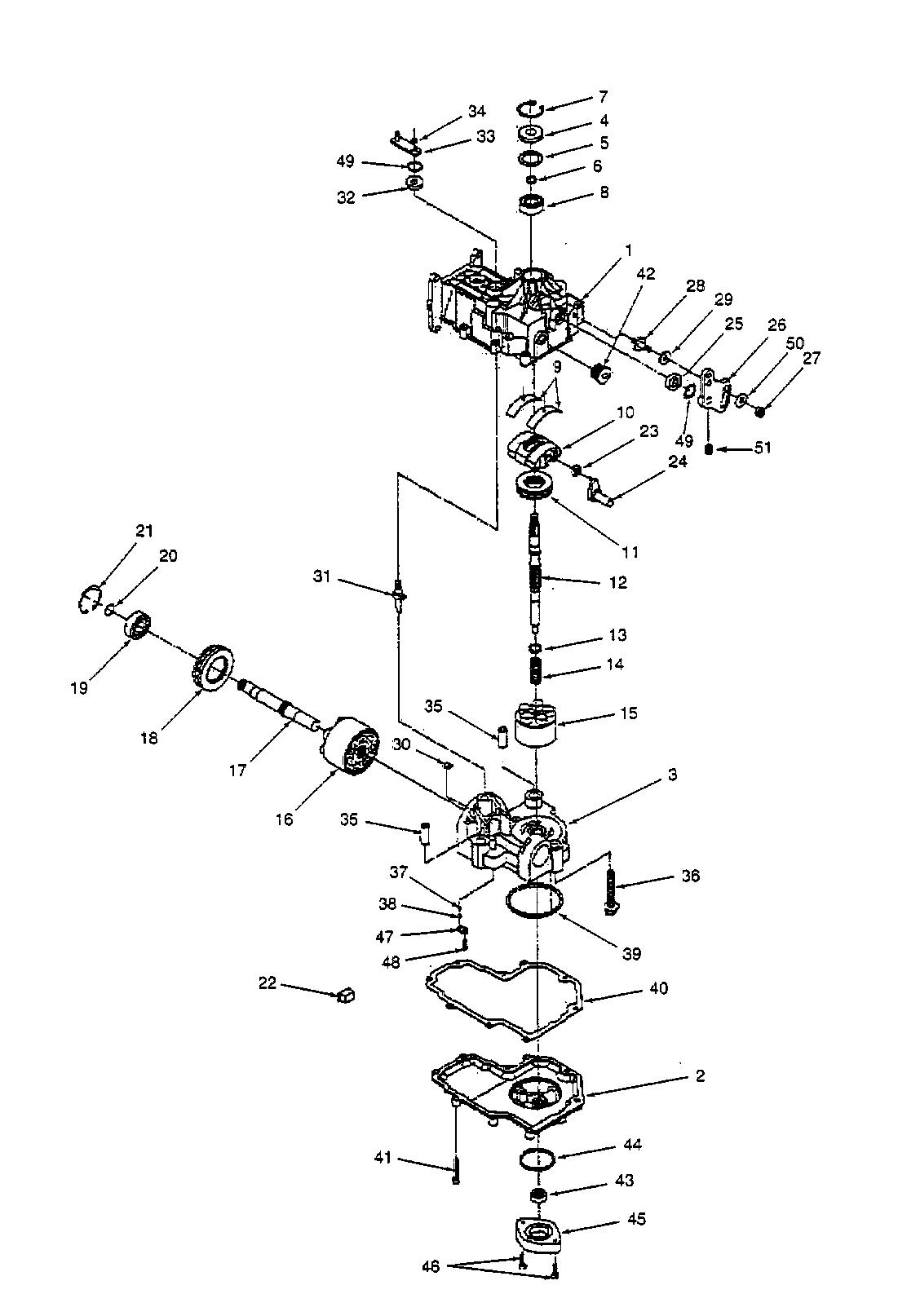

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016508

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 HG-70304 UPPER HOUSING N/A POA
002 HG-50301 HOUSING-LOWER N/A POA
003 HG-70299 CENTER SECTION ASSY. £491.13 Add
004 90080000128 Gasket £33.00 Add
005 HG-2003018 SPACER £8.54 Add
006 HG-2003016 RING-WIRE RETAINING £8.65 Add
007 HG-2003052 RING-RETAINING £8.65 Add
008 HG-2003043P BEARING-BALL £81.44 Add
009 HG-2003023 BEARING-CRADLE £48.37 Add
010 HG-2003087 SWASHPLATE-VARIABLE £211.60 Add
011 HG-50551P DRUCKLAGER £68.32 Add
012 HG-50303 SHAFT,INPUT N/A POA
013 HG-2003017 NO LONGER AVAILABLE N/A POA
014 HG-2003014 SPRING BLOCK £6.44 Add
015 HG-70331 BLOCKASSY-CYLINDER £322.57 Add
016 HG-70082 BLOCK-CYLINDER (MOTER) ASSY £447.56 Add
017 HG-50304 OUTPUT SHAFT N/A POA
018 HG-50552 BEARING-THRUST 42X68X16 £79.99 Add
019 741-0361 BALL BEARING £30.21 Add
020 HG-2000022 RING WIRE RETAINING £9.89 Add
021 28.3592.40 NO LONGER AVAILABLE N/A POA
022 HG-50649 LOCK N/A POA
023 HG-2000015 GUIDE-SLOT £29.24 Add
024 HG-2003005 ARM-TRUNNION £292.70 Add
025 HG-9008-0126 SEAL £16.41 Add
026 HG-45007 ARM CONTROL £41.36 Add
027 712-0237 HEX CENTRE NUT £11.18 Add
028 HG-50426 STUD,SHORT (OBSOLETE) N/A
029 HG-50281 PAD-FRICTION (OBSOLETE) N/A
030 HG-70680 PLATE-BYPASS £31.59 Add
031 HG-2003555 ACTUATOR-BYPASS £56.23 Add
032 HG-45074 NO LONGER AVAILABLE N/A POA
033 HG-50270 ARM BYPASS (OBSOLETE) N/A
034 HG-44870 RING-RETAINING £12.68 Add
035 HG-50002 PIN £18.38 Add
036 HG-50016 BOLT 3/8-24 X 2.5 £16.08 Add
037 HG-2000029 Spring N/A POA
038 9001214-2500 BALL N/A POA
039 HG-50578 RING-O N/A POA
040 HG-50331 GASKET £30.63 Add
041 HG-44876 NO LONGER AVAILABLE N/A POA
042 90051108700 PLUG-VENT £57.86 Add
043 HG-50273 GEROTOR ASSY. £74.70 Add
044 90041011340 O'RING £8.38 Add
045 HG-50260 COVER,GEROTOR N/A POA
046 HG-50095 SCREW £6.65 Add
047 HG-50651 PLATE,RELIEF N/A POA
048 HG-50653 BOLT SELF TAP £6.44 Add
049 HG-50650 RING,RETAINING N/A POA
050 736-0371 WASH:THRST:.343 X .880 X .062 £3.20 Add
051 HG-50018 SET SCREW £12.83 Add
