MTD016511

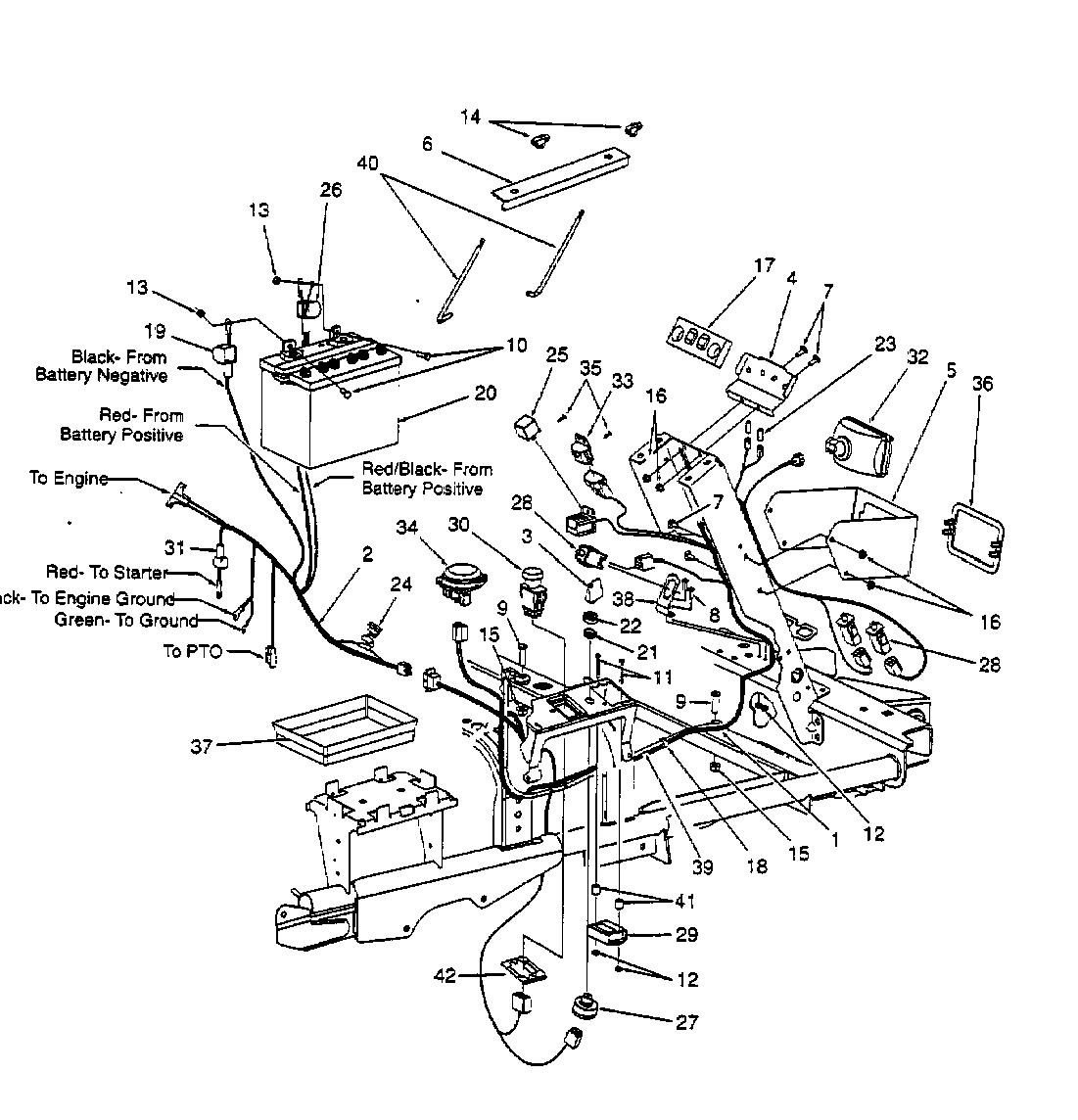

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016511

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 629-3033 WIRE HARNESS, MAIN N/A POA
002 629-3034 WIRE ASM:ZTT ENGINE/KOHLER TWN N/A POA
003 725-0201 IGNITION KEY £6.47 Add
004 703-2809 BRACKET, INDICATOR BLUB N/A POA
005 703-2836 BRACKET, HEADLIGHT N/A POA
006 703-3149 STRIP:HLDDN:BAT £55.74 Add
007 710-0134 BOLT £3.03 Add
008 710-0425 SCR:MACH:#10-24:0.625:TRUSPHI £8.11 Add
009 710-0723 SCRE.HHCS:3/8-16:1.25:GR5:SPEC £8.58 Add
010 710-3015 SCREW HEX CAP £3.33 Add
011 710-3143 SCR:T:#10-24:1.500:PANPHI £2.69 Add
012 712-0161 NYLOK NUT #10-24 £6.05 Add
013 712-0271 NUT:SEMS:1/4-20 £3.03 Add
014 712-0397A WING NUT £5.52 Add
015 712-0431 NUT £3.20 Add
016 712-3027 LOCK NUT £2.79 Add
017 723-0455 COVER N/A POA
018 725-0157 NO LONGER AVAILABLE N/A POA
019 725-0340 CVR:BATT:RH THERM BLACK N/A POA
020 725-0453G BATTERY £174.71 Add
021 725-1346 NUT IGN.SWITCH £5.96 Add
022 725-1347 CAP IGN.SWITCH £6.88 Add
023 725-1365 BULB £10.31 Add
024 725-1656 FUSE 20 AMP MINI AUTOFUSE £6.31 Add
025 725-1718 RELAY £71.51 Add
026 725-3007A NO LONGER AVAILABLE N/A POA
027 725-3163 IGNITION SWITCH £70.08 Add
028 725-3229 TACHOMETER £191.85 Add
028 725-3164A SWITCH INTERLOCK (BRAKE) £36.48 Add
029 725-3229 TACHOMETER £191.85 Add
030 725-1716A SWITCH £42.57 Add
031 725-3250 HEADLIGHT ASSY. N/A POA
032 725-1759 HALOGEN LAMP 50W/12V £45.51 Add
032 725-3250 HEADLIGHT ASSY. N/A POA
033 725-3251 NO LONGER AVAILABLE N/A POA
034 725-3253 SWITCH, SEAT N/A POA
035 726-0349 BRACKET £4.98 Add
036 731-3184 BEZEL,HEADLIGTH N/A POA
037 731-3233 BATTERY TRAY £51.06 Add
038 732-0816 SPRING,SWITCH MOUNTING N/A POA
039 747-3271 ROD,HARNESS N/A POA
040 747-3347 BATTERY HOLDING ROD £15.17 Add
041 750-0539 SPACER (OBSOLETE) (OBSOLETE) N/A
042 783-0462 NO LONGER AVAILABLE N/A POA
