MTD016512

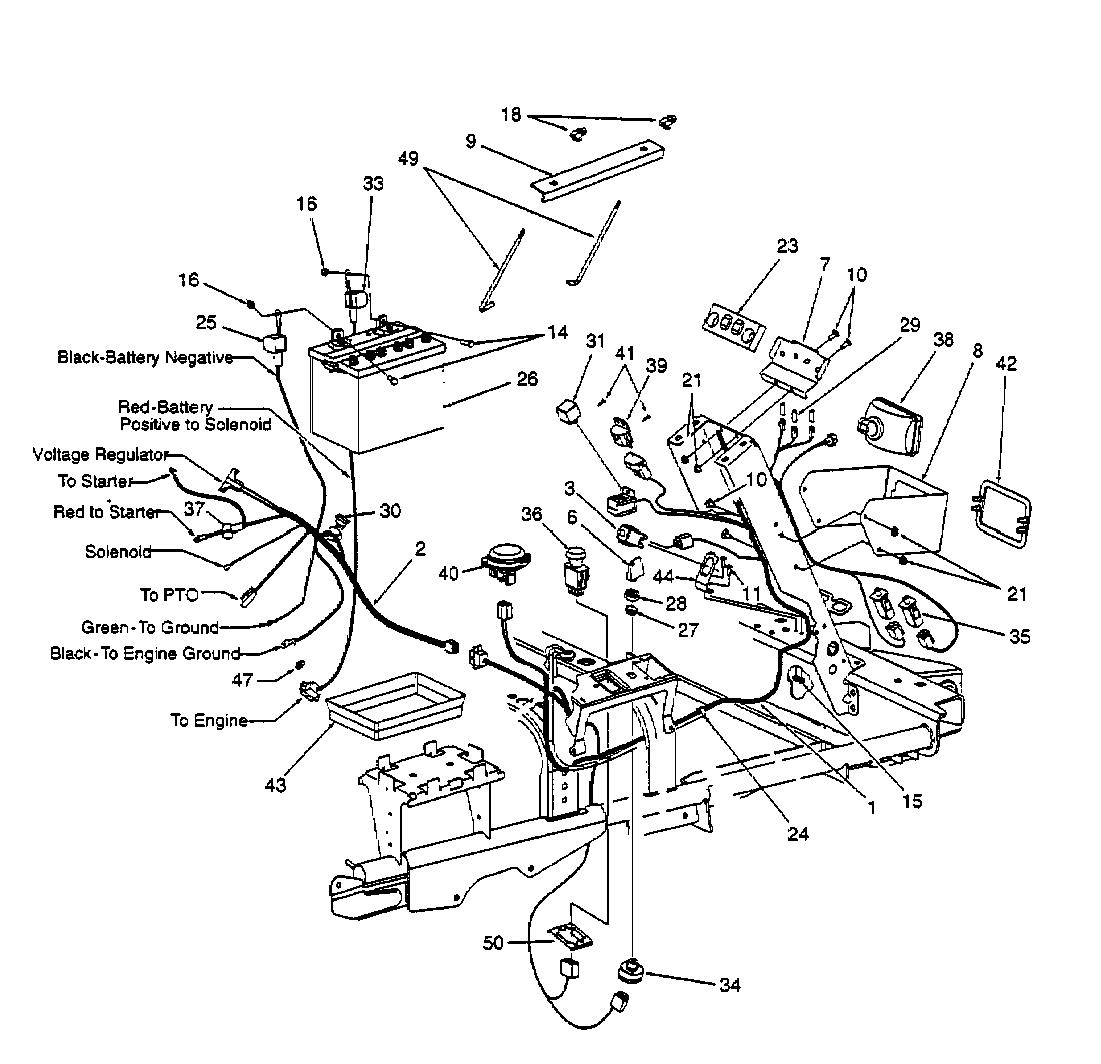

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	629-3032	WIRE HARNESS	N/A	POA
002	629-3035	WIRE HARNESS	N/A	POA
003	725-3191A	SWITCH,INTERLOCK	£32.13	Add
006	725-0201	IGNITION KEY	£6.47	Add
007	703-2809	BRACKET, INDICATOR BLUB	N/A	POA
008	703-2836	BRACKET, HEADLIGHT	N/A	POA
009	703-3149	STRIP:HLDDN:BAT	£55.74	Add
010	710-0134	BOLT	£3.03	Add
011	710-0425	SCR:MACH:#10-24:0.625:TRUSPHI	£8.11	Add
014	710-3015	SCREW HEX CAP	£3.33	Add
015	712-0161	NYLOK NUT #10-24	£6.05	Add
016	712-0271	NUT:SEMS:1/4-20	£3.03	Add
018	712-0397A	WING NUT	£5.52	Add
021	712-3027	LOCK NUT	£2.79	Add
023	723-0455	COVER	N/A	POA
024	725-0157	NO LONGER AVAILABLE	N/A	POA
025	725-0340	CVR:BATT:RH THERM BLACK	N/A	POA
026	725-0453G	BATTERY	£174.71	Add
027	725-1346	NUT IGN.SWITCH	£5.96	Add
028	725-1347	CAP IGN.SWITCH	£6.88	Add
029	725-1365	BULB	£10.31	Add
030	725-1656	FUSE 20 AMP MINI AUTOFUSE	£6.31	Add
031	725-1718	RELAY	£71.51	Add
033	725-3007A	NO LONGER AVAILABLE	N/A	POA
034	725-1717	SWITCH, IGNITION	£40.31	Add
035	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
036	725-1716A	SWITCH	£42.57	Add
037	725-3237	CVR:BATTERY TERM RED	£6.50	Add
038	725-3250	HEADLIGHT ASSY.	N/A	POA
039	725-3251	NO LONGER AVAILABLE	N/A	POA
040	725-3254	SWITCH,SEAT	£93.75	Add
041	726-0349	BRACKET	£4.98	Add
042	731-3184	BEZEL,HEADLIGTH	N/A	POA
043	731-3233	BATTERY TRAY	£51.06	Add
044	732-0816	SPRING,SWITCH MOUNTING	N/A	POA
049	747-3347	BATTERY HOLDING ROD	£15.17	Add
050	783-0462	NO LONGER AVAILABLE	N/A	POA
38A	725-1759	HALOGEN LAMP 50W/12V	£45.51	Add
