Parts list

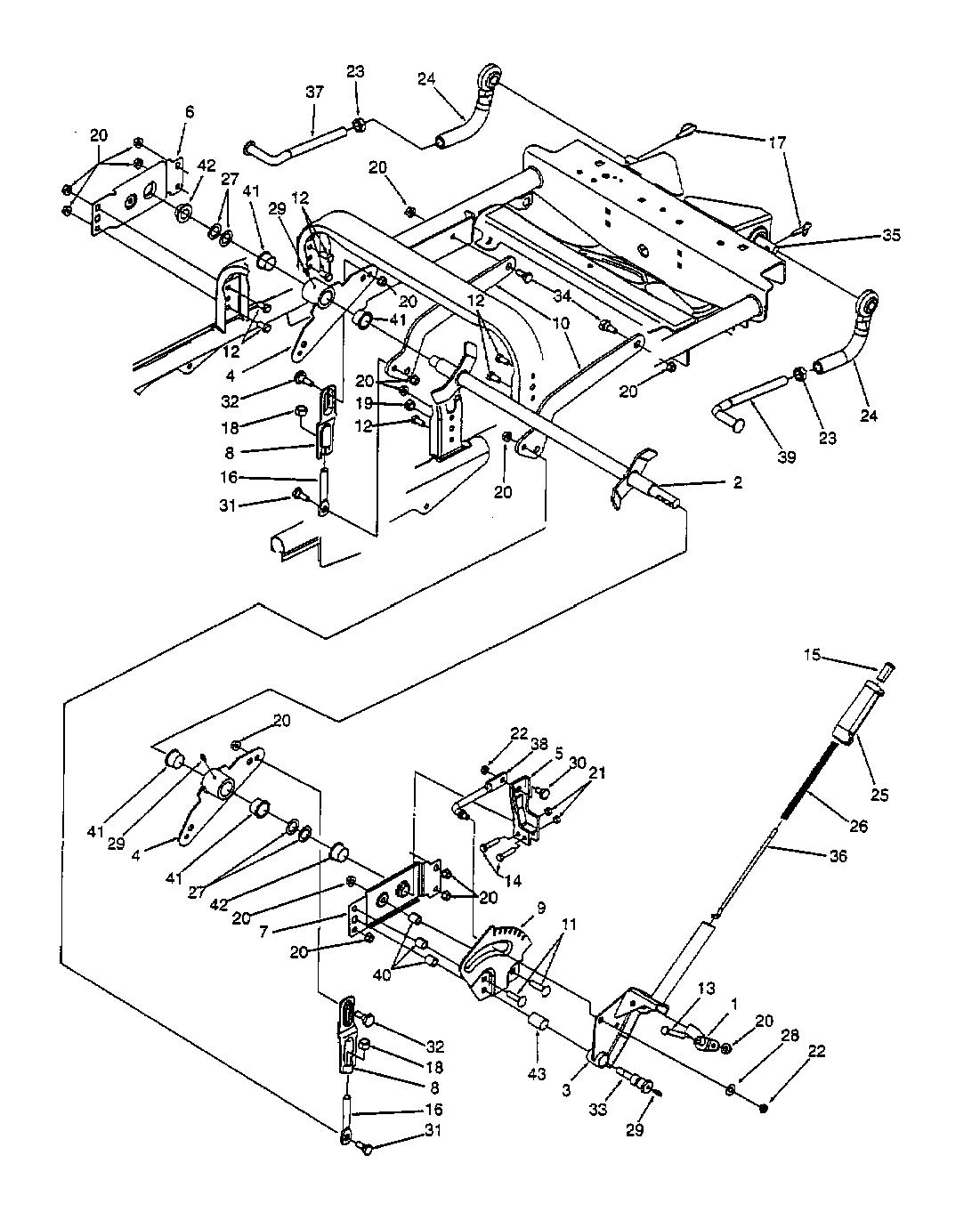

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
603-0257
|
FORK, LIFT
|
£52.00
|
Add
|
|
002
|
603-0313
|
SHAFT ASSY-LIFT
|
N/A
|
POA
|
|
003
|
603-0327
|
LEVER
|
N/A
|
POA
|
|
004
|
603-0370
|
LINK,PIVOT ASSY.
|
N/A
|
POA
|
|
005
|
603-0370
|
LINK,PIVOT ASSY.
|
N/A
|
POA
|
|
006
|
603-0422
|
BRACKET,SHAFT LH.
|
N/A
|
POA
|
|
007
|
603-0423
|
BRKT:AXLE:RH
|
N/A
|
POA
|
|
008
|
703-2621
|
LINK, ADJUSTABLE DECK LIFT
|
N/A
|
POA
|
|
009
|
703-2772
|
PANEL-SELECT 5SP
|
£45.81
|
Add
|
|
010
|
703-2780
|
LINK, PARALLEL LIFT
|
N/A
|
POA
|
|
011
|
710-0431
|
SREW: M5X20-8.8:DIN 603 092.34.137
|
£14.89
|
Add
|
|
012
|
710-0216
|
HHCS:3/8-16:.75:GR5:STD
|
£3.59
|
Add
|
|
013
|
710-3011
|
BOLT 3/8 X 2-1/4 TYPE 5
|
£5.52
|
Add
|
|
014
|
710-3083
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
015
|
711-0642A
|
BUTTON HANDLE
|
£5.20
|
Add
|
|
016
|
711-0773
|
SUSPENSION BRACKET
|
£10.12
|
Add
|
|
017
|
711-3266
|
CLEVIS, PIN
|
£20.99
|
Add
|
|
018
|
712-0206
|
NUT
|
£3.42
|
Add
|
|
019
|
712-0290
|
NUT 7/16 CAD P/T LOCK TYPE 5
|
£2.78
|
Add
|
|
020
|
712-0431
|
NUT
|
£3.20
|
Add
|
|
021
|
712-3009
|
NUT:HEXLK:5/16-18:GRB:CTRLK
|
£2.98
|
Add
|
|
022
|
712-3020
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
023
|
712-3056
|
NUT:JAM:5/8-18:GR5
|
£3.80
|
Add
|
|
024
|
723-0453
|
ROD, HOPPER BAG (42" SWEEPER)
|
£157.45
|
Add
|
|
025
|
731-3158
|
GRIP:HNDL:DECK LIFT
|
£45.81
|
Add
|
|
026
|
732-3097
|
COMP SPRING:.4ID x 8.52 LG
|
£6.50
|
Add
|
|
027
|
736-0287
|
FLAT WASHER .78" X 1.25" X .062"
|
£7.92
|
Add
|
|
028
|
736-0300
|
WASHER
|
£2.81
|
Add
|
|
029
|
737-0280
|
FITTING-GREASE
|
£13.79
|
Add
|
|
030
|
738-0183
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
031
|
738-0380
|
SCR:SHLDR:.500x.270:3/8-16
|
£10.48
|
Add
|
|
032
|
738-0507B
|
SHOULDER BOLT
|
£6.89
|
Add
|
|
033
|
738-3150
|
ROD
|
N/A
|
POA
|
|
034
|
738-3151
|
SCR:SHLD:.56 X .27:3/8-16
|
N/A
|
POA
|
|
035
|
747-3255
|
CLEVIS PIN
|
N/A
|
POA
|
|
036
|
747-3267
|
ASM:SHFT LINK DECK-PAINTED
|
N/A
|
POA
|
|
037
|
747-3275
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
038
|
747-3276
|
ROD, LIFT LINK
|
£29.31
|
Add
|
|
039
|
747-3286
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
040
|
750-3200
|
SPACER,IDLER ARM PULLEY
|
N/A
|
POA
|
|
041
|
741-0229
|
BEARING-FLANGE
|
£8.54
|
Add
|
|
042
|
741-0376
|
BEARING-FLANGE
|
£20.12
|
Add
|
|
043
|
741-3081
|
BEARING,SLEEVE
|
N/A
|
POA
|
