MTD016519

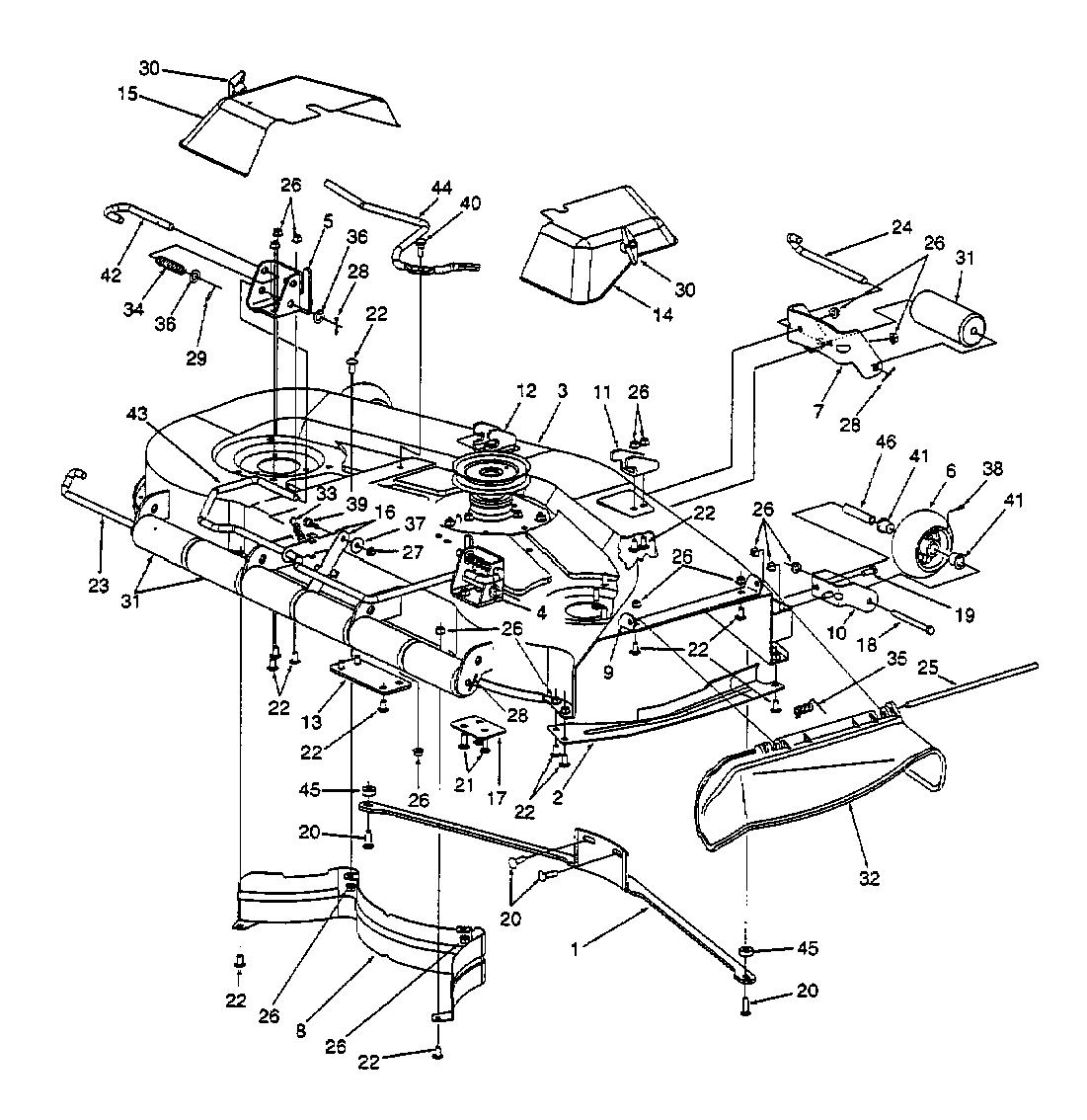

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016519

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0144 FRONT BAR 54" N/A POA
002 603-0149 GUARD-FLYWHEEL N/A POA
003 777-1426 LABLE-CHP:SHRD:VAC £5.52 Add
003 777S30018 ASSEMBLE CHUTE BEFORE USING LB £6.08 Add
004 603-0350 BRACKET,REAR HANGER RIGHT N/A POA
005 603-0351 BRACKET,REAR HANGER LEFT N/A POA
006 634-3159 WHEEL ASSY´S 5" £33.61 Add
007 703-2091A BRACKET N/A POA
008 703-2093C637 BAFFLE REAR INNER 703-2093 £73.04 Add
009 703-2392 BRACKET,CHUTE MOUNTING £26.11 Add
010 703-2410 BRACKET-WHEEL N/A POA
011 703-2430 BRAXKET,DECK RIGHT N/A POA
012 703-2767 BRACKET,DECK LEFT N/A POA
013 703-2791 PLATE,SUPPORT IDLER N/A POA
014 703-2816 CVR:BELT:DECK 46" RH £81.89 Add
016 703-2929 LINK,DECK SUPPORT N/A POA
017 703-2988 BRACKET-TRANS TORQUE N/A POA
018 710-0944 SCREW HEX CAP £4.50 Add
019 710-3001 SCREW HHCS:3/8-16:.880:GR5:STD £3.00 Add
020 710-3034 BOLT:CRG:3/8-16:1.25:GR1 £8.36 Add
021 710-3168 CARRIAGE BOLT 3/8 INCH X 1 INCH £7.01 Add
022 710-3178 BOLT SHORT NECK CARR £11.46 Add
023 711-1103 CLEVIS PIN £68.72 Add
024 711-3314 PIN, ROLLER £33.00 Add
025 711-3318 HINGE PIN £26.21 Add
026 712-0431 NUT £3.20 Add
027 712-3004A HEX FLANGE NUT £2.97 Add
028 714-0115 COTTER PIN £3.42 Add
029 715-3003 PIN, SPIRAL SPRING £15.25 Add
030 720-04072A HAND RELEASE £4.27 Add
031 731-3005 ROLLER £42.43 Add
032 731-3131A DEFLECTOR £102.98 Add
033 732-0395 SPRING-EXTENSION £17.52 Add
034 732-0802 Spring £5.26 Add
035 732-3070 SPRING-TORSION £25.06 Add
036 736-0160 WASH:FLAT:.530x.930x.050 £3.39 Add
037 736-0231 WASHER FLAT £3.58 Add
038 737-0280 FITTING-GREASE £13.79 Add
039 738-3024 NO LONGER AVAILABLE N/A POA
040 738-0380 SCR:SHLDR:.500x.270:3/8-16 £10.48 Add
041 741-0487C FLANGE BEARING £6.18 Add
042 747-3013 NO LONGER AVAILABLE N/A POA
043 747-3306 ASS`Y, LIFT HANDLE (WLDM) N/A POA
044 747-3305 N/A POA
045 750-3119 SPACER £13.99 Add
046 750-3193 BUSH £17.14 Add
