MTD014661

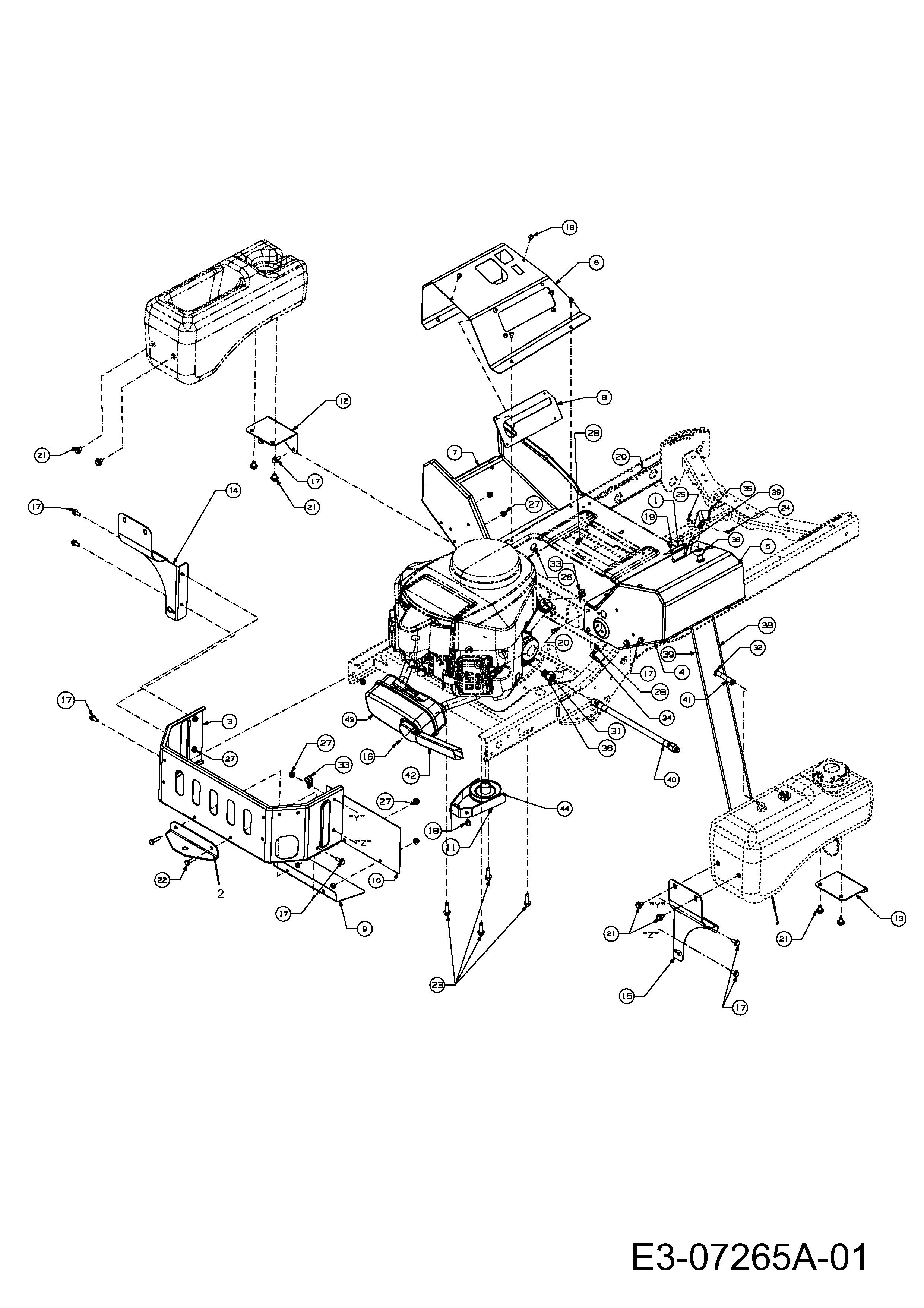

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	703-05899	BRKT:THROT:KAW:EXPORT	£63.43	Add
002	703-07543A	HITCH BRACKET	N/A	POA
003	703-07570	BUMPER LOWER REAR (OBSOLETE)	N/A
004	703-07583B	CONSOLE LOWER RH	N/A	POA
005	703-07584	CONSOLE UPPER RH	N/A	POA
006	703-07585	CONSOLE UPPER LH	N/A	POA
007	703-07588B	CONSOLE LOWER LH	N/A	POA
008	703-07627A	BRKT LOCK BRAKE PARK	N/A	POA
009	703-07658	SHIELD:HEAT	N/A	POA
010	703-07739	SHIELD:HEAT	N/A	POA
011	703-08000	GUIDE ASSY-BELT	N/A	POA
012	703-08313B	FRONT MOUNTING PAD	N/A	POA
013	703-08314B	BRKT FUEL	N/A	POA
014	703-08598	FRONT MOUNTING PAD	N/A	POA
015	703-08599	BRKT FUEL	N/A	POA
016	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
017	710-04043	SCREW	£10.58	Add
018	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
019	710-05070	SCR:TT:1/4-20:.5:PANTRXI:BLK	£4.18	Add
020	710-05074	Screw	£7.27	Add
021	710-05361	SCREW HEX WIZ	N/A	POA
022	710-0874	HHCS:5/16-18:1.25:GR5:SPEC	£3.20	Add
023	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
024	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
025	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
026	712-0271	NUT:SEMS:1/4-20	£3.03	Add
027	712-04063	FLANGED NUT	£4.20	Add
028	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
029	712-3005	NUT:FLGLK:3/8-16:GR5	£3.49	Add
030	712-3010	NUT 5/16 x 18	£2.77	Add
031	721-0331	SLNT:PIPE:PST 592 LOCTITE	N/A	POA
032	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
033	726-0272	Clamp	£2.98	Add
034	726-0475	CLAMP-HOSE	£29.99	Add
035	731-06593	KNOB:THROTTLE	£13.85	Add
036	737-04138	FTG:1.0 HEX x M20 METRIC THD	£27.42	Add
038	746-04057	NO LONGER AVAILABLE	N/A	POA
039	746-1086	CBL:THROT:39"LGx.62 INTEK TWIN	£24.26	Add
040	751-10291A	HOSE-OIL DRAIN 13,75 LG	£60.02	Add
041	751-10349	HOSE:FUEL:LOW PERMEATION	£72.63	Add
042	751-11424A	DEFLECTOR MUFFLER	£54.20	Add
043	751-11471	MFLR:TWIN:KAWASAKI 730CC	N/A	POA
044	756-04415	PUL:ENG:ELEC PTO	£45.72	Add
