MTD012691

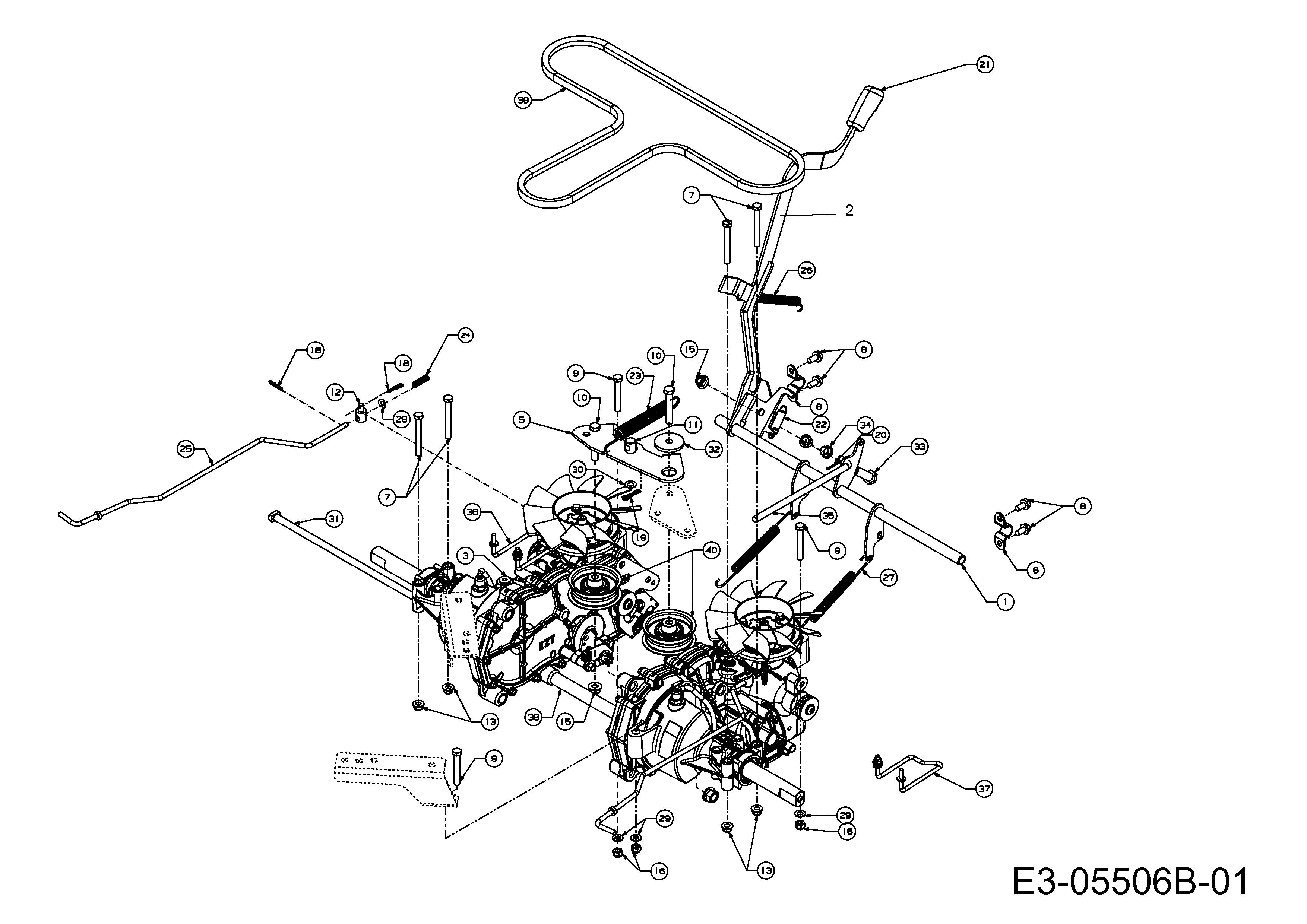

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012691

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04770 SHF:BRAKE N/A POA
002 603-04773 HNDL PARK BRAKE N/A POA
003 618-04868 TRANS ASM HYDRO LH N/A POA
004 618-04869 TRANS ASM HYDRO RH N/A POA
005 703-07318C BRACKET IDLER N/A POA
006 703-07593 BRACKET BRAKE SHAFT N/A POA
007 710-0176 HHCS:5/16-18:2.75:GR5:STD £6.11 Add
008 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
009 710-05278 SCREW HEX CAP 5/16-24X2.25 N/A POA
010 710-3011 BOLT 3/8 X 2-1/4 TYPE 5 £5.52 Add
011 711-0832 FERRULE:3/8-24x.375 DIA:HT TRT £13.94 Add
012 711-1530 FERRULE:.325 ID x .312 OD £24.80 Add
013 712-04063 FLANGED NUT £4.20 Add
014 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
015 712-04065 NUT £4.02 Add
016 712-0411 NUT £2.69 Add
017 712-0459 LOCK NUT £4.59 Add
018 714-0104 PIN INTERNAL COTTER £2.78 Add
019 714-04040 PIN-COTTER £4.38 Add
020 714-0507 COTTER PIN 3/32 DIA £3.13 Add
021 731-04735 Handle £24.91 Add
022 732-0209 EXTENSION SPRING £8.58 Add
023 732-04229 SPR:EXT:.75 DIA x 6.02 £14.35 Add
024 732-0437 COMPR. SPRING:.34 OD x 1.0 LG £17.07 Add
025 732-04688A WIRE LVR BYPASS N/A POA
026 732-0963 SPRING £9.72 Add
027 732-0994 SPR:EXTN:.500 DIA x 7.0 LG £14.30 Add
028 736-0175 SPRING WASHER £3.39 Add
029 736-0264 WASH:FLAT:.330 x.630x.0635 £3.59 Add
030 736-0314 WASHER-THRUST £2.97 Add
031 738-04192B LINK-SPEED CONTROL £59.51 Add
032 738-04392 SPACER £15.86 Add
033 738-0533 SHLD SCREW £6.33 Add
034 741-0491 BEARING-NYLINER £12.94 Add
035 747-05139A ROD-BRAKE N/A POA
036 747-05277A KEEPER BELT LH N/A POA
037 747-05278A KEEPER BELT RH £27.53 Add
038 750-05347 SPACER N/A POA
039 754-04250 BELT-A SEC X 63 £85.71 Add
040 756-04224 IDLER PULLEY £28.15 Add
