MTD012673

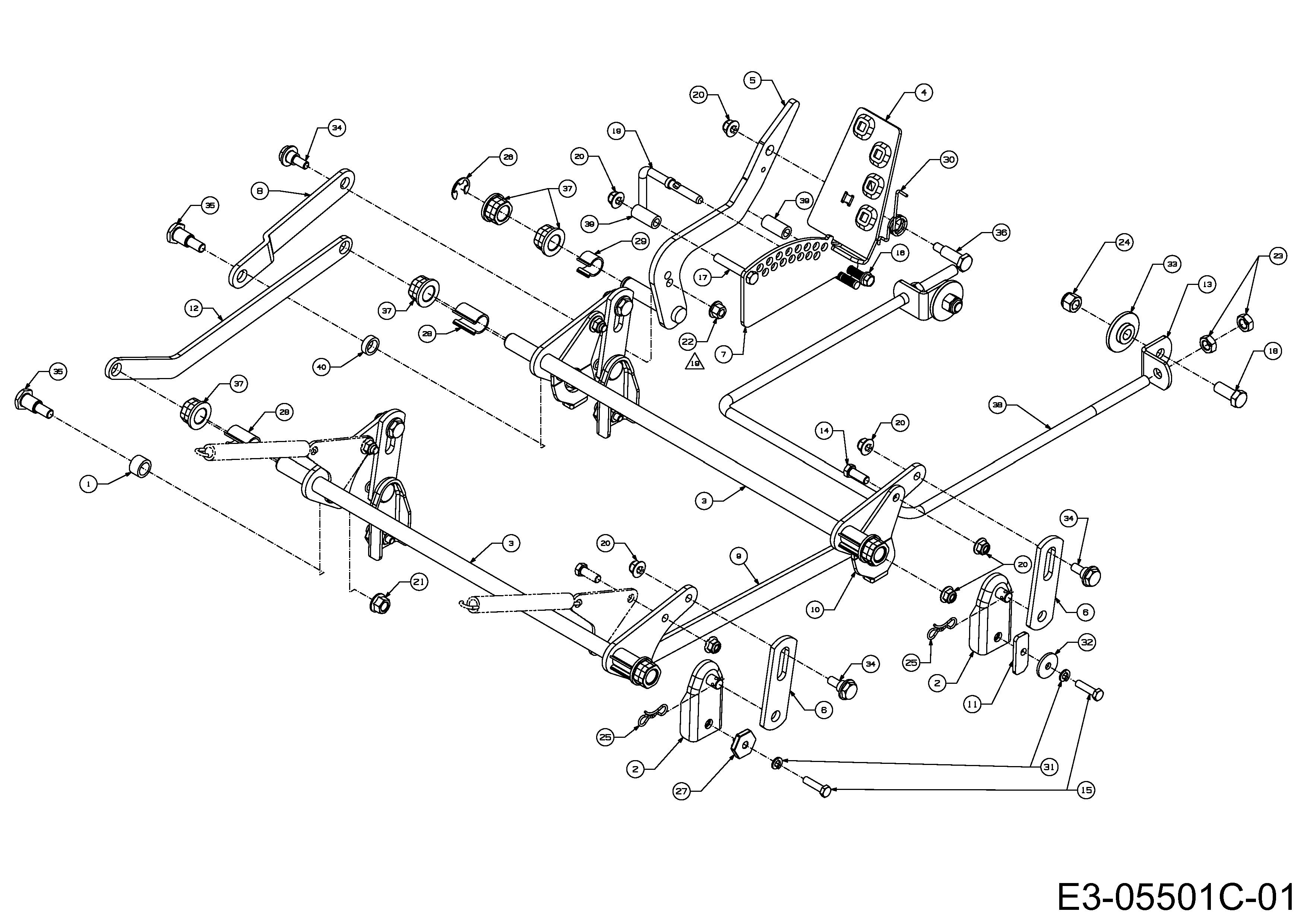

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012673

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 02005535 SPACER £29.89 Add
002 603-04771 BRKT DECK LIFT ADJ £35.94 Add
003 603-04867 DECK LIFT SHAFT N/A POA
004 603-04880 PEDAL DECK LIFT N/A POA
005 603-04881 PIVOT LIFT PEDAL N/A POA
006 703-07489A DECK LIFT LINK £28.63 Add
007 703-07540A PLATE HEIGHT INDEX N/A POA
008 703-07552A LINK LIFT PEDAL N/A POA
009 703-07554 LINK ROCK SHAFT N/A POA
010 703-07663A BRKT DECK UP STOP N/A POA
011 703-07672 SPACER SQUARE £19.55 Add
012 703-07770 LINK ROCK SHAFT N/A POA
013 703-08215 BRACKET HANGER ROD N/A POA
014 710-0514 HEX BOLT £3.81 Add
015 710-0528 SCREW (DNR) £3.55 Add
016 710-1008 NO LONGER AVAILABLE N/A POA
017 710-3011 BOLT 3/8 X 2-1/4 TYPE 5 £5.52 Add
018 710-3032 BOLT-HEX 1/2-13X1-1/4 £10.97 Add
019 711-05500A ROD LOCK LIFT PEDAL £45.11 Add
020 712-04065 NUT £4.02 Add
021 712-0459 LOCK NUT £4.59 Add
022 712-05007 NUT-HEX FLANGED LOCK 3/8-16 £6.79 Add
023 712-3048 HEX JAM NUT 1/2-13 GR.5 £10.38 Add
024 712-3083 NUT £2.79 Add
025 714-04043 COTTER PIN £4.29 Add
026 716-0231 E RING (RED) £2.97 Add
027 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
028 731-06848 SPACER:.79ID x .95 OD x 1.35LG £7.71 Add
029 731-08265 SPACER PEDAL PIVOT N/A POA
030 732-04829 SPR: TORSION:.290 ID X 1.95 N/A POA
031 736-0119 LOCK WASHER 5/16 £3.33 Add
032 736-0343 WASHER-5/16 x 1.25 £4.57 Add
033 738-04337A SPACER:SHLDE £20.49 Add
034 738-04428 SCREW-SHOULDER £22.12 Add
035 738-04489 SCREW-SHOULDER £12.81 Add
036 738-1014 SCREW-SHOULDER £5.81 Add
037 741-04499 Bearing flange £21.95 Add
038 747-05353A ROD DECK FRONT £69.46 Add
039 750-04584 SPCR:.375 ID x.625 OD x 1.34 £4.85 Add
040 750-05362 SPACER-PULLEY N/A POA
